VLAN Configuration
3-175
Web – Click VLAN, Protocol VLAN, Configuration.

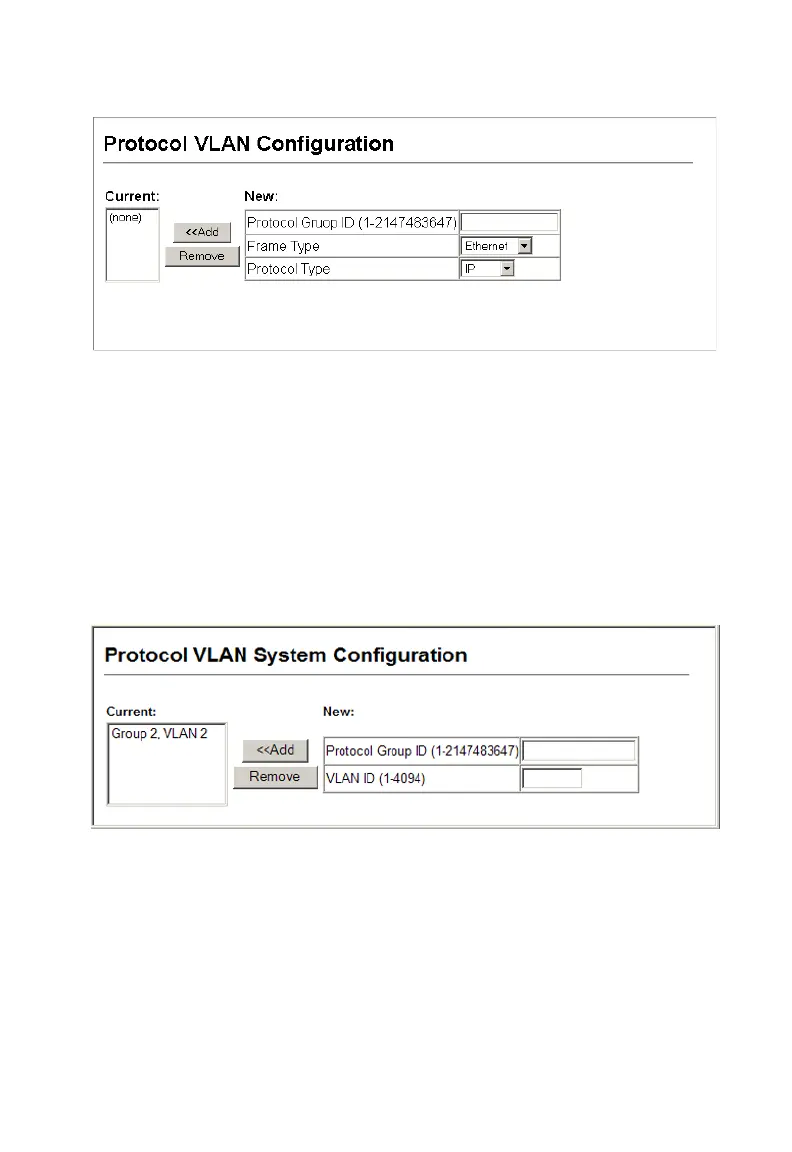

Figure 3-88 Protocol VLAN Configuration
Configuring the Protocol VLAN System
Use the Protocol VLAN System Configuration menu to map a Protocol VLAN Group
to a VLAN.
Command Attributes
• Protocol Group ID - Protocol Group ID assigned to the Protocol VLAN Group.
(Range: 1-2147483647)
• VLAN ID - VLAN to which matching protocol traffic is forwarded. (Range: 1-4094)
Web – Click VLAN, Protocol VLAN, System Configuration.
Figure 3-89 Protocol VLAN System Configuration
