Port Configuration
3-111
Web – Click Port, LACP, Aggregation Port. Set the System Priority, Admin Key, and
Port Priority for the Port Actor. You can optionally configure these settings for the
Port Partner. (Be aware that these settings only affect the administrative state of the
partner, and will not take effect until the next time an aggregate link is formed with
this device.) After you have completed setting the port LACP parameters, click Apply.
Also note that
you must use the Enable checkbox to specify the ports for which the
Admin Key is to be updated
.

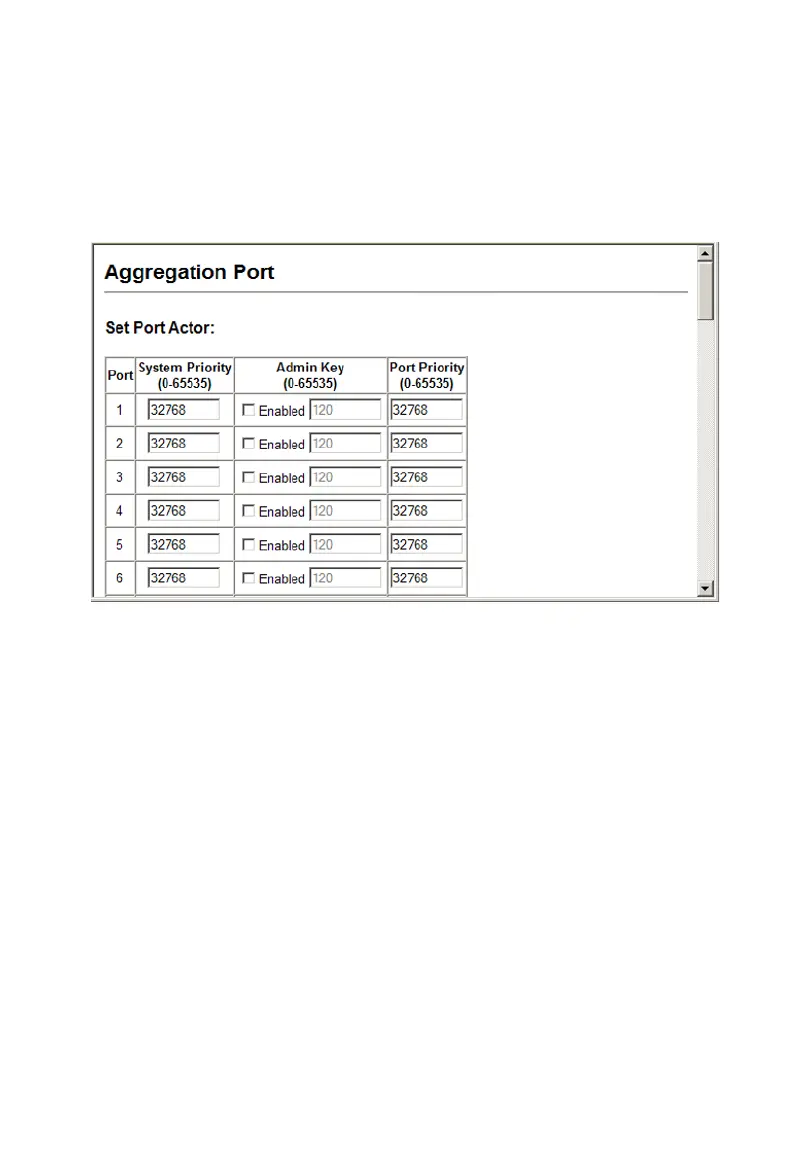

Figure 3-58 LACP Aggregation Port Configuration
