Configuring the Switch
3-218
Command Attributes
• Interface – Indicates a port or trunk.
• Member – Shows the IP addresses for MVR multicast groups which have been
statically assigned to the selected interface.
• Non-Member – Shows the IP addresses for all MVR multicast groups which have
not been statically assigned to the selected interface.
Web – Click MVR, Group Member Configuration. Select a port or trunk from the
“Interface” field, and click Query to display the assigned multicast groups. Select a
multicast address from the displayed lists, and click the Add or Remove button to
modify the Member list.

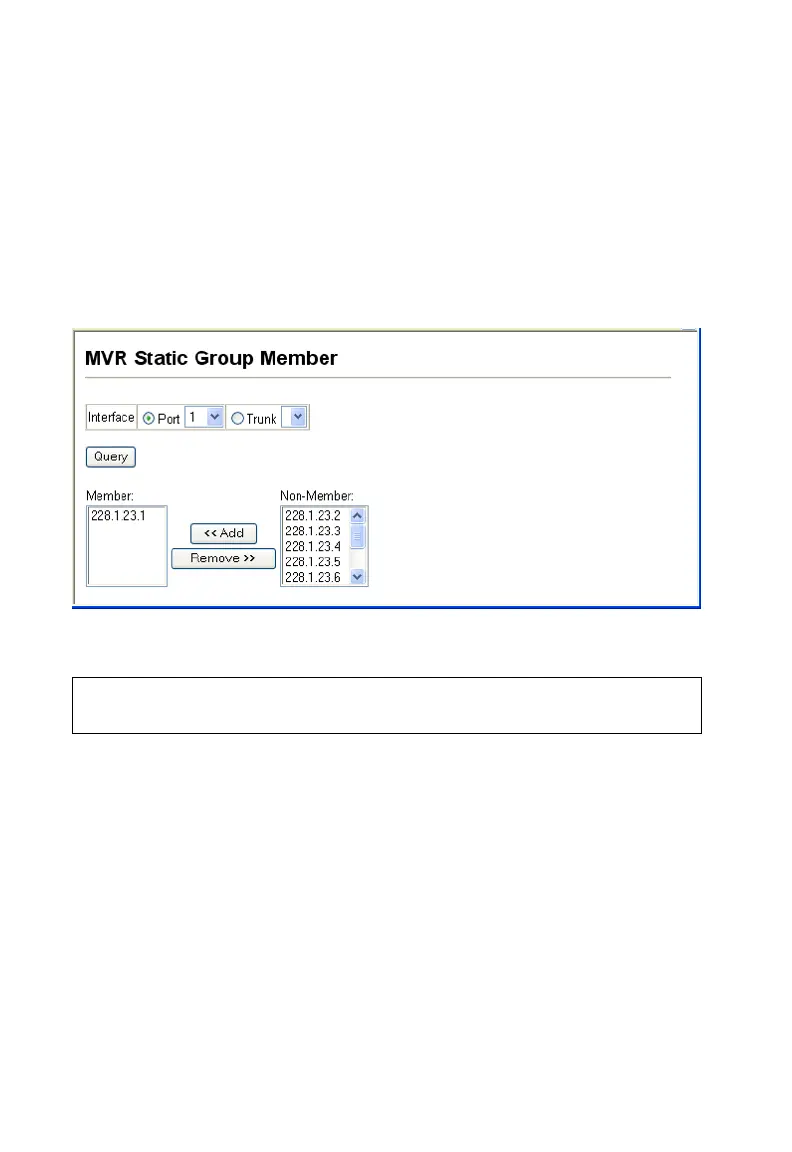

Figure 3-111 MVR Group Member Configuration
CLI – This example statically assigns a multicast group to a receiver port.
Console(config)#interface ethernet 1/2
Console(config-if)#mvr group 228.1.23.1 4-263
Console(config-if)#
