Configuring the Switch
3-180
Web – Click LLDP, Port/Trunk Configuration. Set the LLDP transmit/receive mode,
specify whether or not to send SNMP trap messages, select the information to
advertise in LLDP messages, select the information to advertise in MED-TLV
messages and specify whether or not to send MED notifications. Then click Apply.

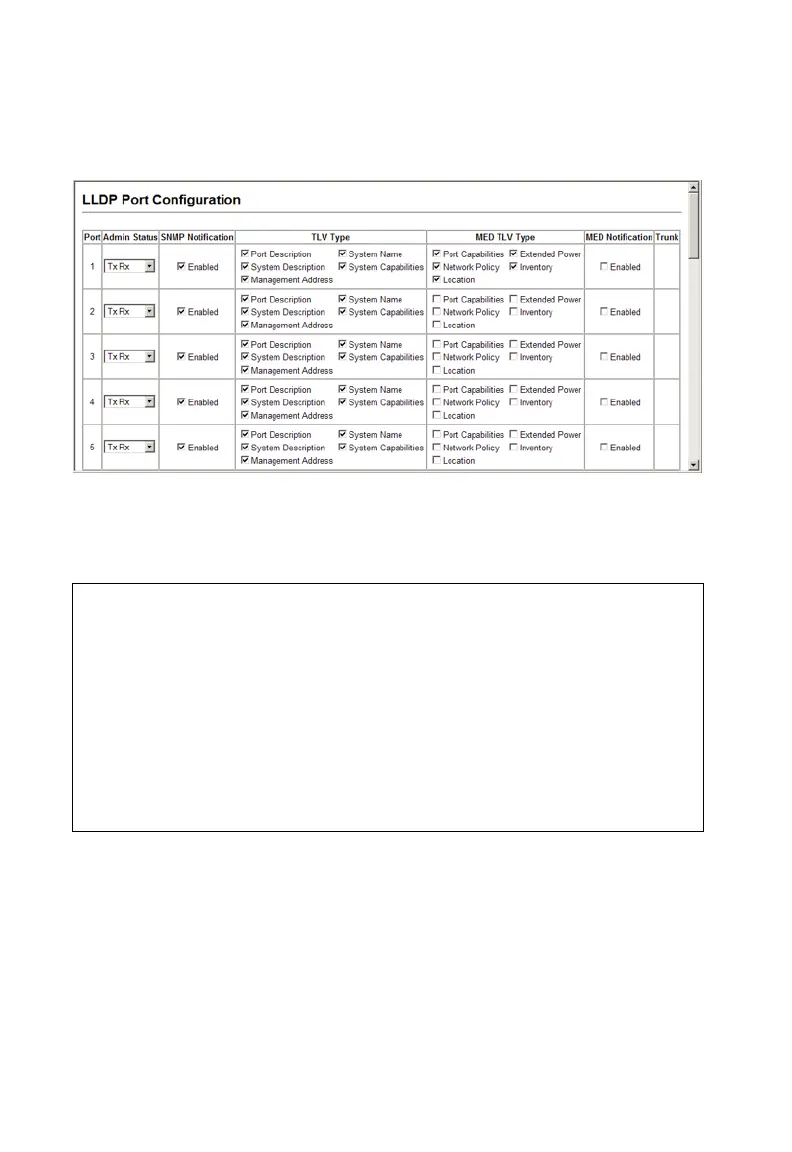

Figure 3-5 LLDP Port Configuration
CLI – This example sets the interface to both transmit and receive LLDP messages,
enables SNMP trap messages, enables MED notification, and specifies the TLV,
MED-TLV, dot1-TLV and dot3-TLV parameters to advertise.
Console(config)#interface ethernet 1/1 4-135
Console(config-if)#lldp admin-status tx-rx 4-218
Console(config-if)#lldp notification 4-218
Console(config-if)#lldp medNotification 4-219
Console(config-if)#lldp basic-tlv port-description 4-221
Console(config-if)#lldp basic-tlv system-description 4-222
Console(config-if)#lldp basic-tlv management-ip-address 4-220
Console(config-if)#lldp basic-tlv system-name 4-222
Console(config-if)#lldp basic-tlv system-capabilities 4-221
Console(config-if)#lldp medtlv med-cap 4-228
Console(config-if)#lldp medtlv network-policy 4-229
Console(config-if)#lldp medtlv location 4-228
Console(config-if)#lldp medtlv extPoe 4-227
Console(config-if)#lldp medtlv inventory 4-227
Console(config-if)#
