Multicast VLAN Registration
3-211
CLI – This example assigns a multicast address to VLAN 1, and then displays all the
known multicast services supported on VLAN 1.
Multicast VLAN Registration
Multicast VLAN Registration (MVR) is a protocol that controls access to a single
network-wide VLAN most commonly used for transmitting multicast traffic (such as
television channels or video-on-demand) across a service provider’s network. Any
multicast traffic entering an MVR VLAN is sent to all attached subscribers. This
protocol can significantly reduce to processing overhead required to dynamically
monitor and establish the distribution tree for a normal multicast VLAN. This makes
it possible to support common multicast services over a wide part of the network
without having to use any multicast routing protocol.
MVR maintains the user isolation and data security provided by VLAN segregation
by passing only multicast traffic into other VLANs to which the subscribers belong.
Even though common multicast streams are passed onto different VLAN groups
from the MVR VLAN, users in different IEEE 802.1Q or private VLANs cannot
exchange any information (except through upper-level routing services).
Console(config)#ip igmp snooping vlan 1 static 224.1.1.12
ethernet 1/12 4-253
Console(config)#exit
Console#show mac-address-table multicast vlan 1 4-256
VLAN M'cast IP addr. Member ports Type
---- --------------- ------------ -------
1 224.1.1.12 Eth1/12 USER
1 224.1.2.3 Eth1/12 IGMP
Console#

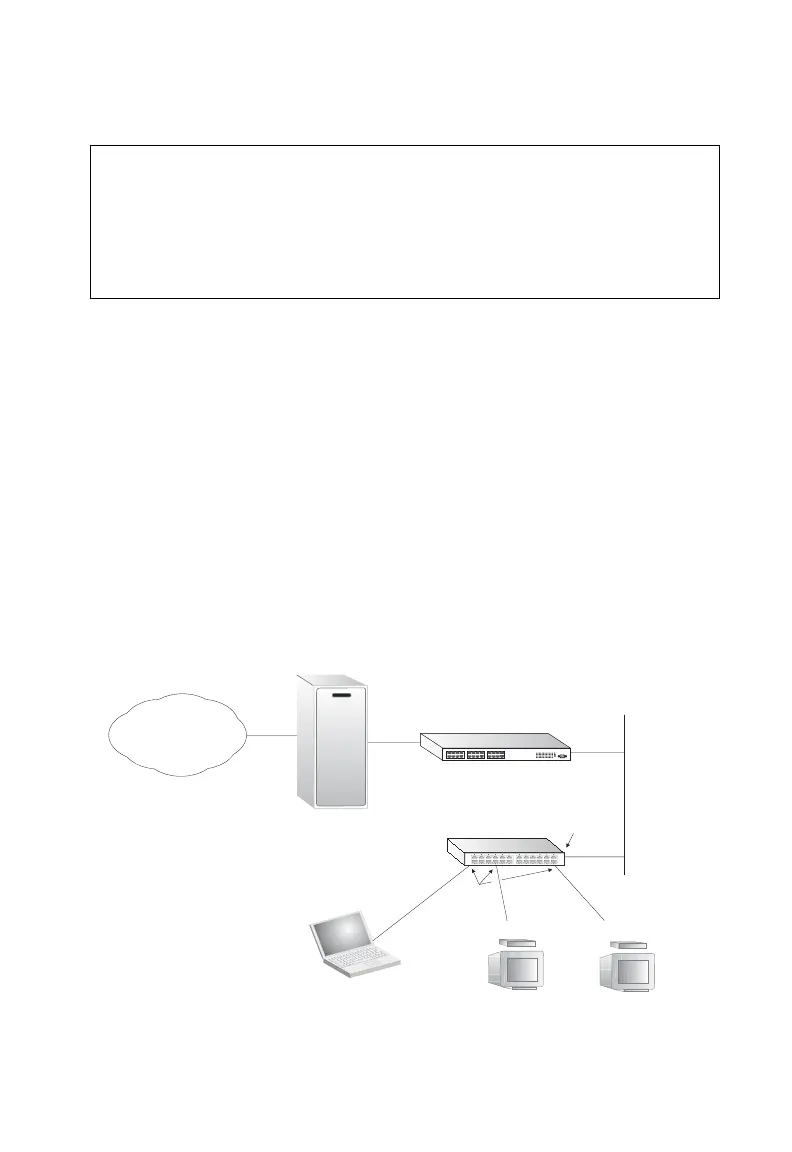

Multicast Router
Layer 2 Switch
Multicast Server
PC
TV
Set-top Box
TV
Set-top Box
Satellite Services
Service
Network
Source
Port
Receiver
Ports
