Displaying Private VLAN Interface Information
Use the Private VLAN Port Information and Private VLAN Trunk Information menus
to display the interface associated with private VLANs.
Command Attributes
• Port/Trunk - The switch interface.
• PVLAN Port Type - Displays private VLAN port types.
- Normal – The port is not configured in a private VLAN.
- Host – The port is a community port and can only communicate with other ports
in its own community VLAN, and with the designated promiscuous port(s).
- Promiscuous – A promiscuous port can communicate with all the interfaces
within a private VLAN.
• Primary VLAN - Conveys traffic between promiscuous ports, and between
promiscuous ports and community ports within the associated secondary VLANs.
• Community VLAN – A community VLAN conveys traffic between community
ports, and from community ports to their designated promiscuous ports.
• Trunk – The trunk identifier. (Port Information only)
Web – Click VLAN, Private VLAN, Port Information or Trunk Information.

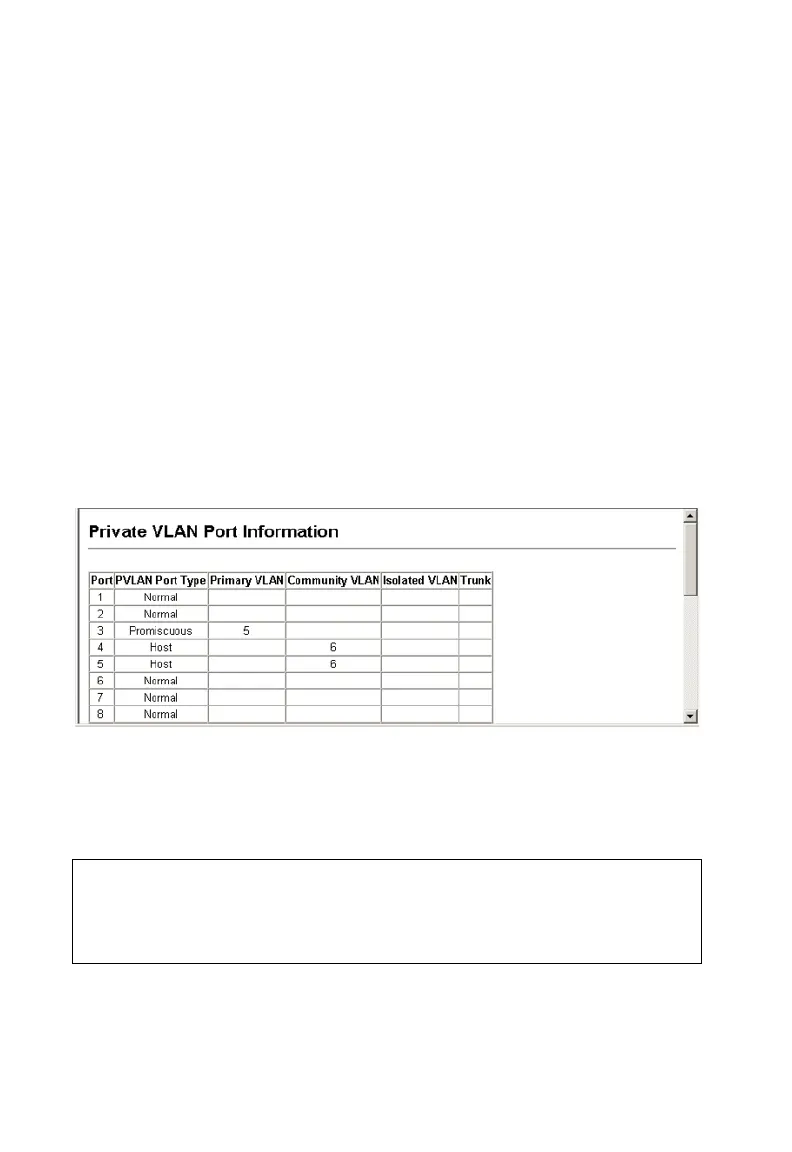

Figure 3-86 Private VLAN Port Information
CLI – This example shows the switch configured with primary VLAN 5 and
community VLAN 6. Port 3 has been configured as a promiscuous port and mapped
to VLAN 5, while ports 4 and 5 have been configured as host ports and associated
with VLAN 6. This means that traffic for port 4 and 5 can only pass through port 3.
Console#show vlan private-vlan 4-207
Primary Secondary Type Interfaces
-------- ----------- ---------- ------------------------------
5 primary Eth1/ 3
5 6 community Eth1/ 4 Eth1/ 5
Console#
