VLAN Configuration
3-163
• Add – Adds a new VLAN group to the current list.
• Remove – Removes a VLAN group from the current list. If any port is assigned to
this group as untagged, it will be reassigned to VLAN group 1 as untagged.
Web – Click VLAN, 802.1Q VLAN, Static List. To create a new VLAN, enter the
VLAN ID and VLAN name, mark the Enable checkbox to activate the VLAN, and
then click Add.

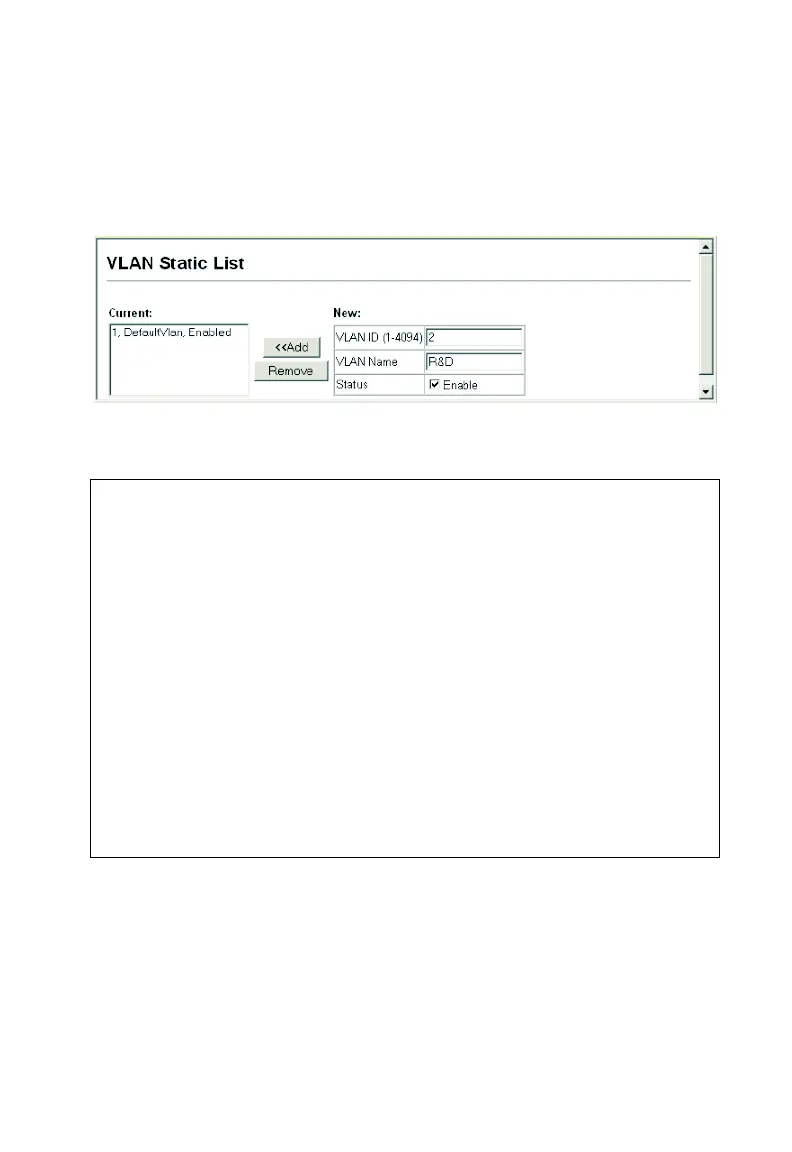

Figure 3-79 Creating Virtual LANs
CLI – This example creates a new VLAN.
Console(config)#vlan database 4-194
Console(config-vlan)#vlan 2 name R&D media ethernet state active 4-195
Console(config-vlan)#end
Console#show vlan 4-202
Default VLAN ID : 1
VLAN ID: 1
Type: Static
Name: DefaultVlan
Status: Active
Ports/Port Channels: Eth1/ 1(S) Eth1/ 2(S) Eth1/ 3(S) Eth1/ 4(S) Eth1/ 5(S)
Eth1/ 6(S) Eth1/ 7(S) Eth1/ 8(S) Eth1/ 9(S) Eth1/10(S)
Eth1/11(S) Eth1/12(S) Eth1/13(S) Eth1/14(S) Eth1/15(S)
Eth1/16(S) Eth1/17(S) Eth1/18(S) Eth1/19(S) Eth1/20(S)
Eth1/21(S) Eth1/22(S) Eth1/23(S) Eth1/24(S)
VLAN ID: 2
Type: Static
Name: V2
Status: Active
Ports/Port Channels:
Console#
