VLAN Configuration
3-169
To configure primary/secondary associated groups, follow these steps:
1. Use the Private VLAN Configuration menu to designate one or more community
VLANs, and the primary VLAN that will channel traffic outside of the VLAN
groups.
2. Use the Private VLAN Association menu to map the secondary (i.e.,
community) VLAN(s) to the primary VLAN.
3. Use the Private VLAN Port Configuration menu to set the port type to
promiscuous (i.e., having access to all ports in the primary VLAN), or host (i.e.,
having access restricted to community VLAN members, and channeling all
other traffic through promiscuous ports). Then assign any promiscuous ports to
a primary VLAN and any host ports a community VLAN.
Displaying Current Private VLANs
The Private VLAN Information page displays information on the private VLANs
configured on the switch, including primary and community VLANs, and their
assigned interfaces.
Command Attributes
• VLAN ID – ID of configured VLAN (1-4094), and VLAN type.
• Primary VLAN – The VLAN with which the selected VLAN ID is associated. A
primary VLAN displays its own ID, and a community VLAN displays the associated
primary VLAN.
• Ports List – The list of ports (and assigned port type) in the selected private VLAN.
Web – Click VLAN, Private VLAN, Information. Select the desired port from the
VLAN ID drop-down menu.

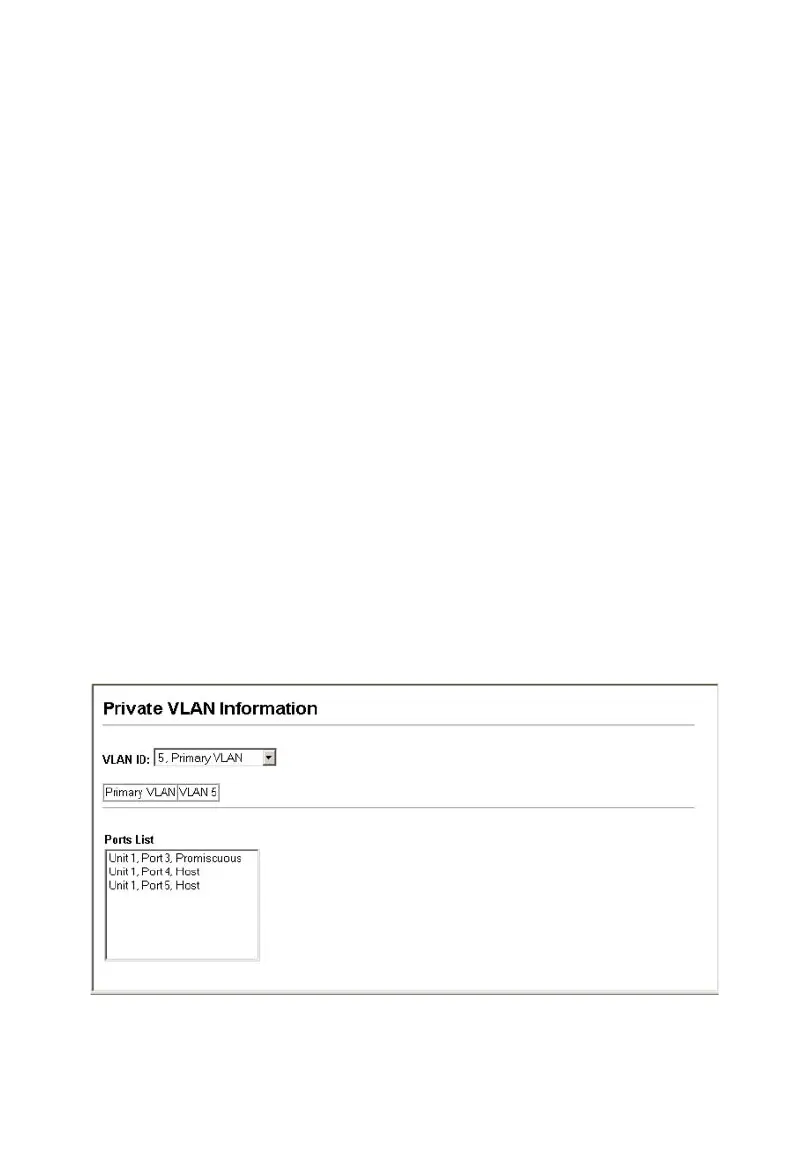

Figure 3-83 Private VLAN Information
