Multicast VLAN Registration
3-217
• Immediate Leave – Configures the switch to immediately remove an interface
from a multicast stream as soon as it receives a leave message for that group.
(This option only applies to an interface configured as an MVR receiver.)
• Trunk
21
– Shows if port is a trunk member.
Web – Click MVR, Port or Trunk Configuration.

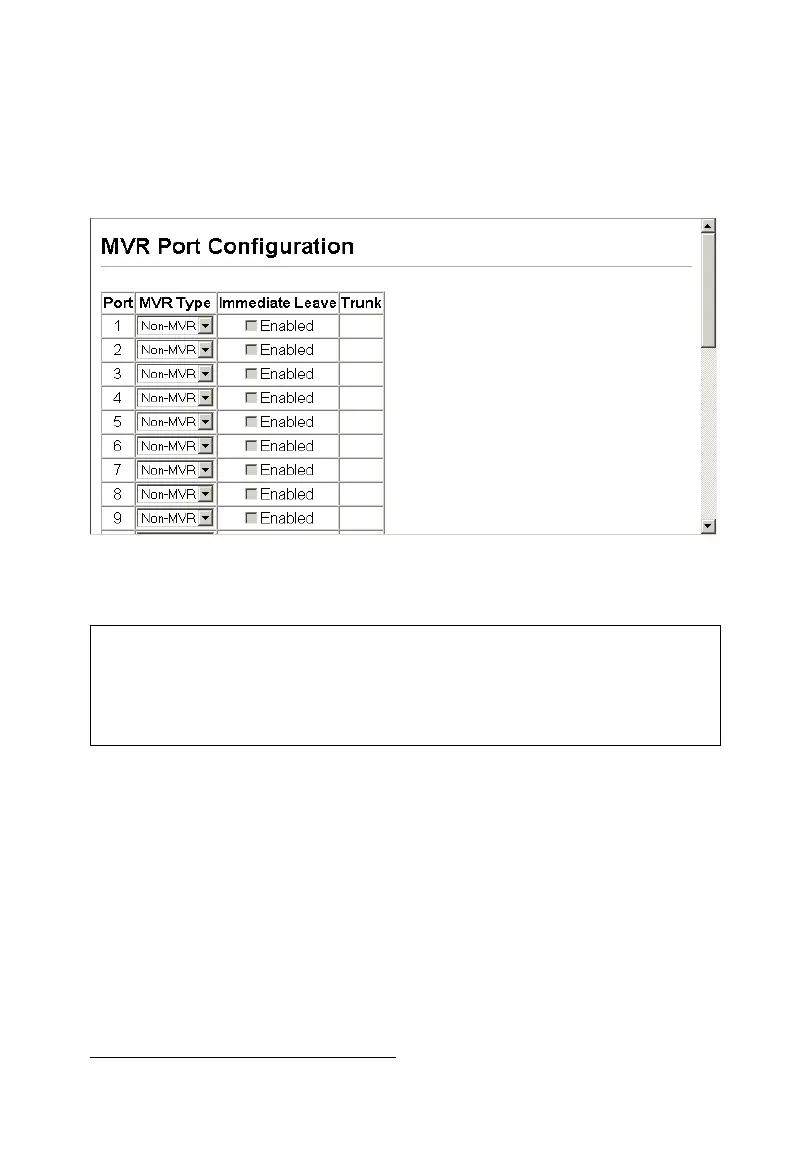

Figure 3-110 MVR Port Configuration
CLI – This example configures an MVR source port and receiver port, and then
enables immediate leave on the receiver port.
Assigning Static Multicast Groups to Interfaces
For multicast streams that will run for a long term and be associated with a stable set
of hosts, you can statically bind the multicast group to the participating interfaces.
Command Usage
• Any multicast groups that use the MVR VLAN must be statically assigned to it
under the MVR Configuration menu (see“Configuring Global MVR Settings” on
page 3-212).
• The IP address range from 224.0.0.0 to 239.255.255.255 is used for multicast
streams. MVR group addresses cannot fall within the reserved IP multicast
address range of 224.0.0.x.
21. Port Information only.
Console(config)#interface ethernet 1/1
Console(config-if)#mvr type source 4-263
Console(config-if)#exit
Console(config)#interface ethernet 1/2
Console(config-if)#mvr type receiver 4-263
Console(config-if)#mvr immediate 4-264
Console(config-if)#
