7.1.4 Laser Align Application main menu
The horizontal alignment, vertical alignment, and straightness measurements are three-
step processes. The Laser Align Application main menu lets you monitor the progress of an
alignment job. An X marks a completed step.

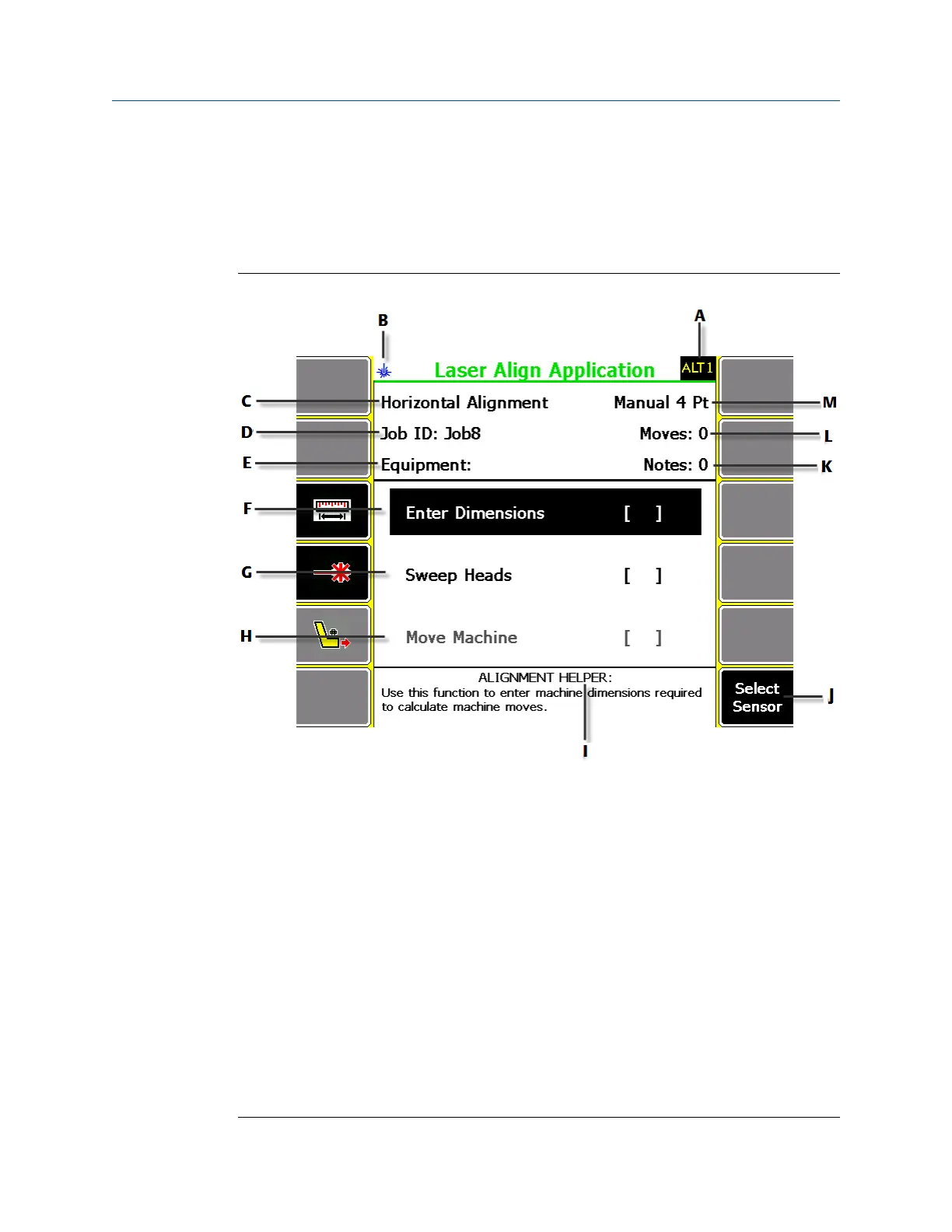

Laser Align Application main menu - Advanced horizontal alignment jobFigure 7-2:
A. An alternate (ALT) screen includes additional options. The ALT screen varies for horizontal and
vertical alignment and for straightness measurements.
B. Icon indicating that this is a Bluetooth-only application.
C. The alignment mode (horizontal, vertical, or straightness).
D. The identifier for the job.
E. The identifier for the equipment.
F. Enter machine dimensions for the machines being aligned.
G. Acquire data required to determine the alignment condition of the machines. For straightness
measurements, this is labeled Acquire Data.
H. View machine moves required to bring the machines into alignment. For straightness
measurements, this is labeled Surface Profile and it is where you can review the surface profile of
the machines.
I. View helpful information regarding the highlighted step or the active screen. You can also view
additional helpful information about the active screen by pressing the Help button twice.
J. Choose which Bluetooth sensor to communicate with.
K. The number of notes assigned to the job.
L. The number of data acquisitions for the job.
M. The alignment method for the job. This is blank for straightness measurements.
Advanced Laser Alignment
MHM-97432 Rev 7 165
