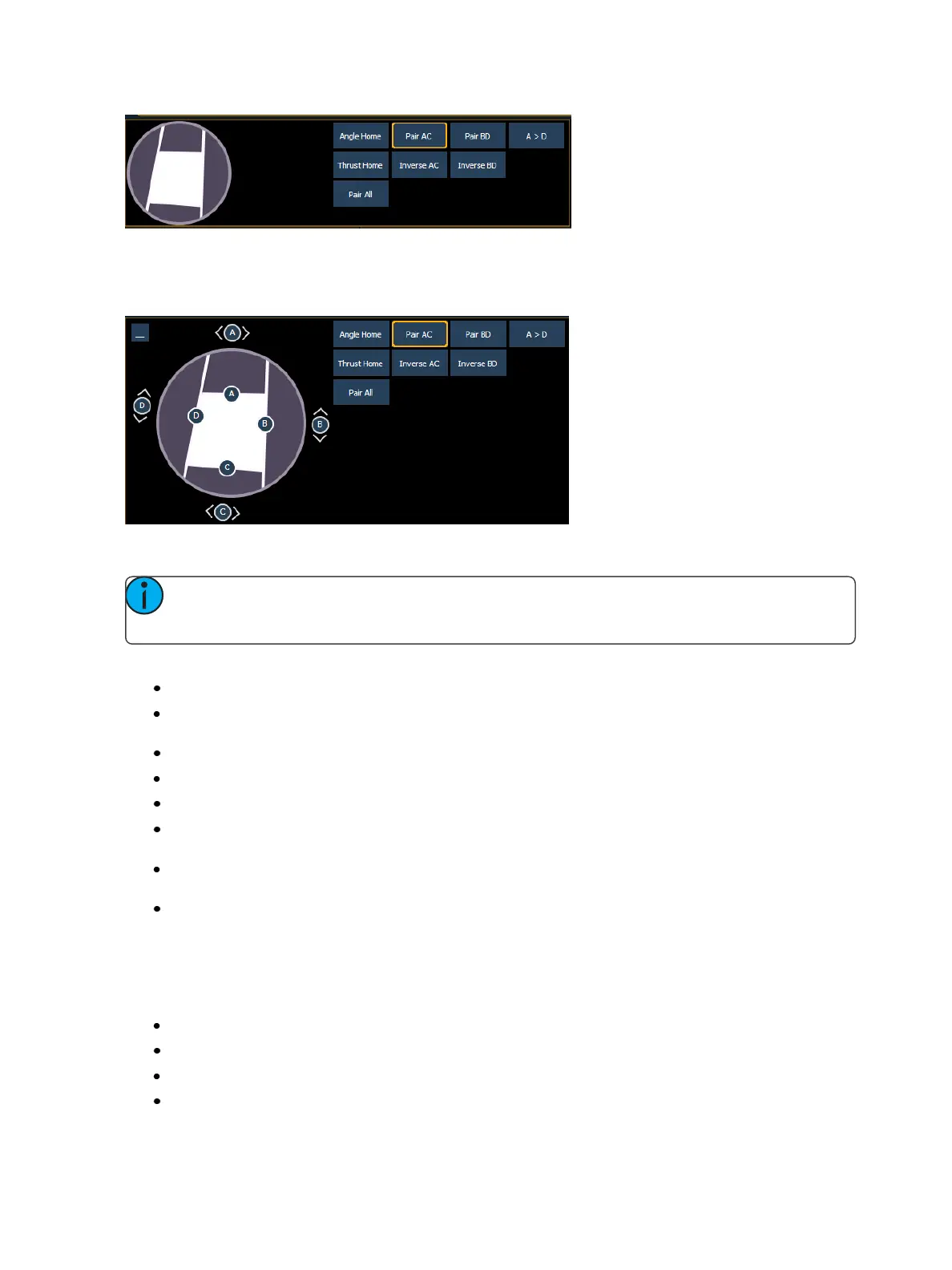

The shutter controls window allows you to move individual shutters by holding down one of the let-
ters inside of the shutter graphic. To rotate the shutters, use the <A>, <B>, <C>, or <D> buttons
around the outside of the shutter graphic.
Encoder Buttons
Note: The encoder buttons are used with the encoders for shutter control. These buttons
do not work with the shutter graphic control.
The following buttons are available for shutter control:
Angle Home- sets the angle of all of the shutters to their home position.
Thrust Home- sets the thrust (how far in or out of the beam the shutter travels) of all of the
shutters to their home position.
Pair AC - pairs the A and C shutters together so they move together.
Pair BD- pairs the B and D shutters together so they move together.
Pair All- pairs all of the shutters so they move together.
InverseAC - pairs the A and C shutters so they move in the opposite directions from each
other.
Inverse BD - pairs the B and D shutters so they move in the opposite directions from each
other.
A>D - sets the encoders to use the custom encoder pages for the shutters. Thrust for all of
the shutters is on one page, Angle for all is on another page.
Color Control
Depending upon the specific device, color can be established manually with the encoders using:
CMY color-mixing
Hue and saturation color mixing
RGB color-mixing
Selection from a color wheel or scroller
