Using Auto-SYNC for Digital Input Connections
210 TIMS MVP™ Setup and Configuration Guide
In the next example, the video image is too small. The image is too far from the left edge.

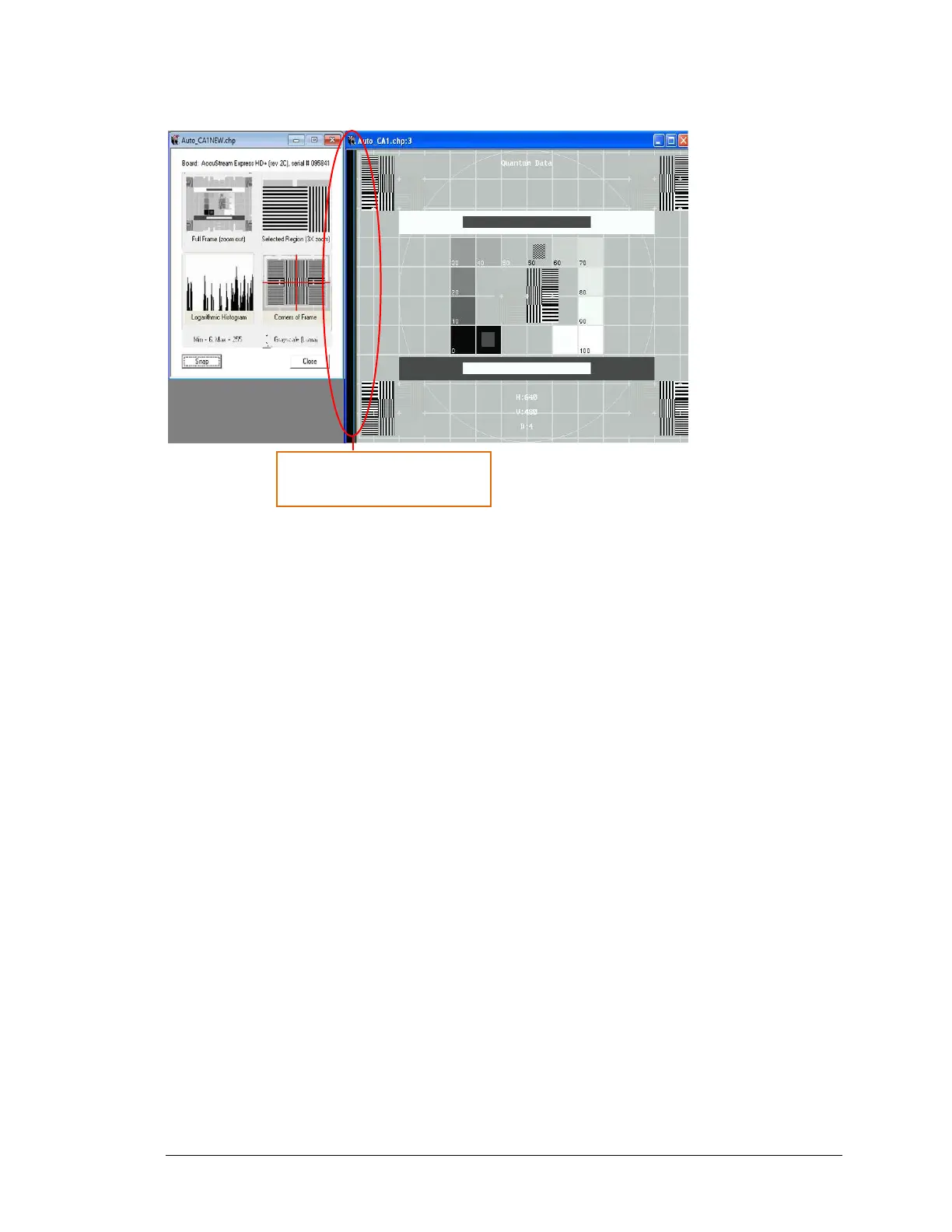

Figure 110: Example of framing values too small
To adjust the image, increase the HBS value to move the image to the left edge.
The image is too small and is too
far from the left edge.
