îš„Area Settings
Displays the [Delete Outside/Delete Inside - Area 1 (Area 2 or Area 3)] screen. You can
set up to 3 areas.
Refer to "[Delete Outside/Delete Inside - Area 1 (Area 2 or Area 3)] Screen" (P.122).
îš„Originals
When the original document is a 2-sided document, specify from which side the
specified area is to be deleted.
z
Both Sides
Applies the settings to both sides of the document.
z
Side 1 Only
Applies the settings to side 1 of the document.
z
Side 2 Only
Applies the settings to side 2 of the document.
îš„Original Orientation
Allows you to specify the orientation of the document to have the machine identify the
top of the document.
Note • If the [Original Orientation] differs from the actual document orientation, then the machine
may mistakenly detect the top of the document.
z
Upright Images
Select this item when placing the top edge of the document against the top side of
the document glass or document feeder.
z
Sideways Images
Select this item when placing the top edge of the document against the left side of
the document glass or document feeder.

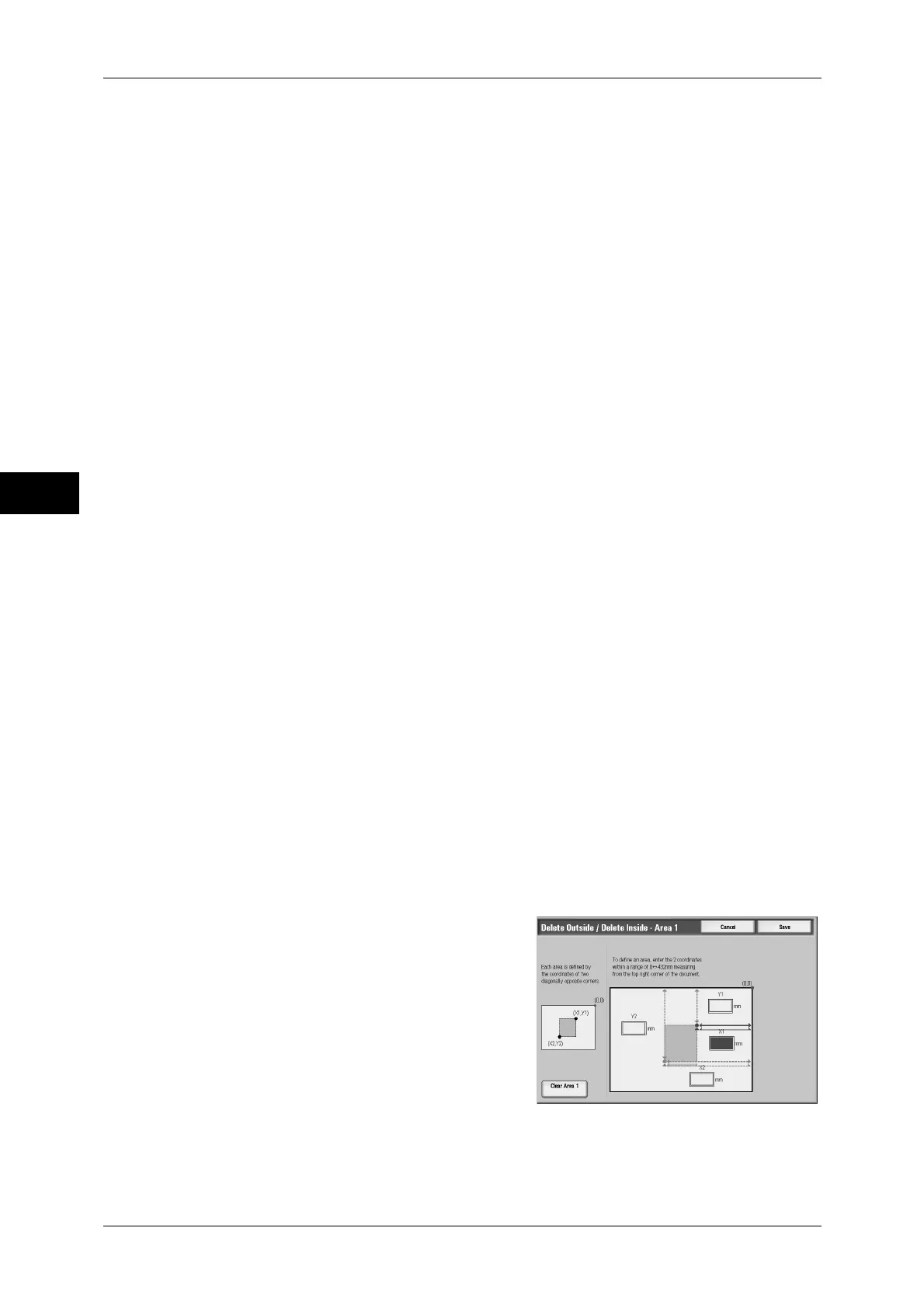

[Delete Outside/Delete Inside - Area 1 (Area 2 or Area 3)] Screen
Set the area to be deleted. The area is defined by the rectangle formed between the
points X1,Y1 and X2,Y2. The origin point is the top-right corner of a document.
You can specify a value within the range of 0 to 432 mm for the width (X) and the length
(Y) in 1 mm increments.
Note • Specify the 2 coordinates from the top right corner of the document.
• When specifying multiple areas, the specified areas can overlap each other.
• When [Reduce/Enlarge] is enabled, the specified area will be reduced/enlarged accordingly.
1
Select [Area 1], [Area 2], or [Area 3].
2
Enter the value for X1 into [X1] using the
numeric keypad, and select [Save].
3
Enter the value for Y1 into [Y1] using the
numeric keypad, and select [Save].
4
Enter the value for X2 into [X2] using the
numeric keypad, and select [Save].
5
Enter the value for Y2 into [Y2] using the
numeric keypad, and select [Save].
Note • If all of [X1], [Y1], [X2], and [Y2] are set to [0], the area will be invalid. If no other area is
specified, the Delete Outside/Delete Inside feature cannot be used.
• If you select <C> button, the value is cleared.
