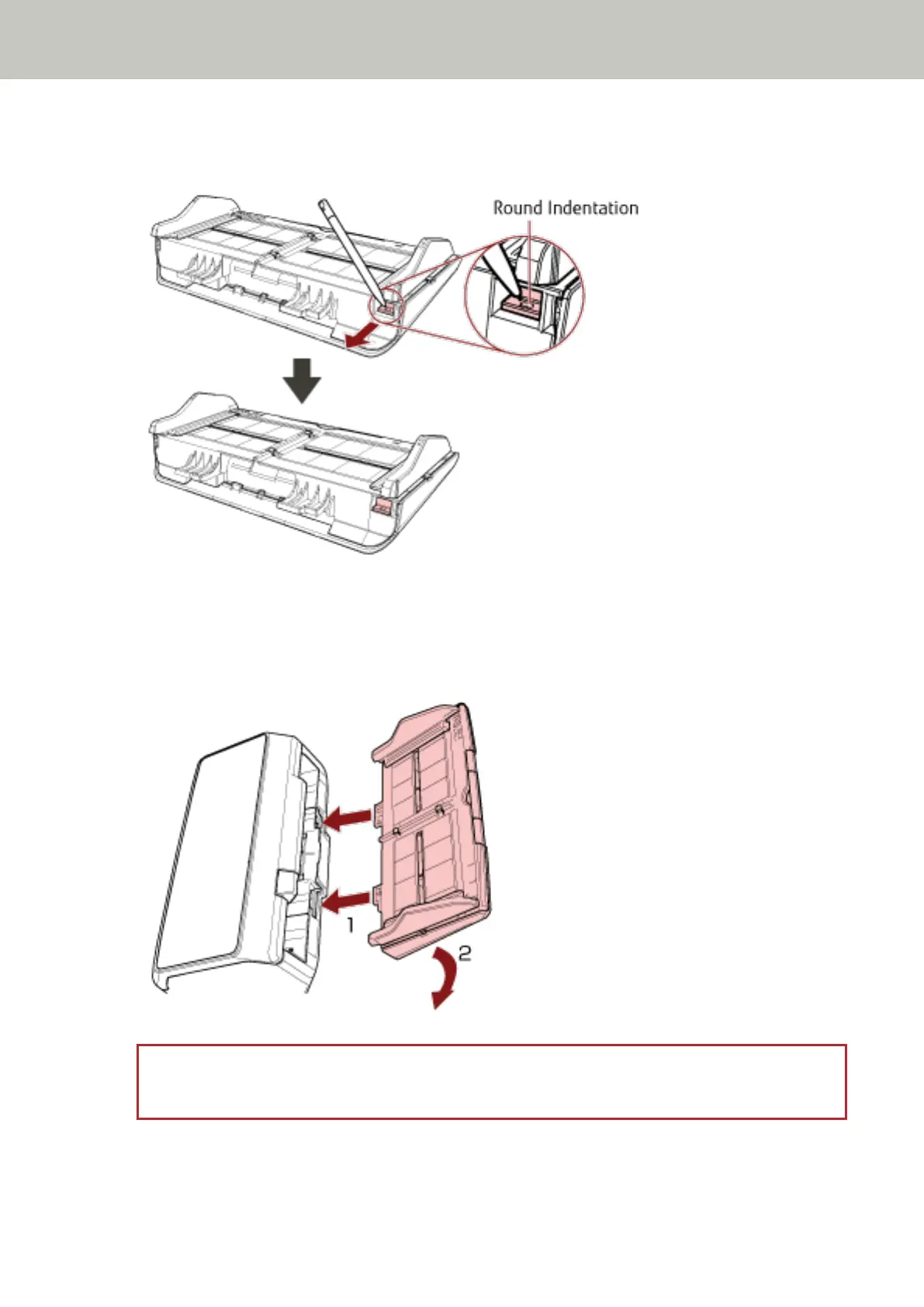

2 Insert a ballpoint pen into the round indentation on the side guide adjuster of the ADF paper chute
(feeder) and pull out the side guide adjuster.
3 Attach the ADF paper chute (feeder).
Insert the tabs into the slots on the back of the scanner in the direction of arrow 1 and tilt the ADF paper
chute (feeder) downwards in the direction of arrow 2 until it locks in place.
Attach the ADF paper chute (feeder) with the side guides facing upwards.
ATTENTION
Do not leave any space between the ADF paper chute (feeder) and the scanner.
4 Pull out the chute extensions according to the length of the document.
For details, refer to Setting Up the ADF Paper Chute (Feeder) (page 81).
Various Ways to Scan
179
