Scanning Books with the Flatbed [fi-8290/fi-8270/fi-8250/fi-8250U]

1 Open the document cover.

For details, refer to How to Open the Document Cover (page 79).

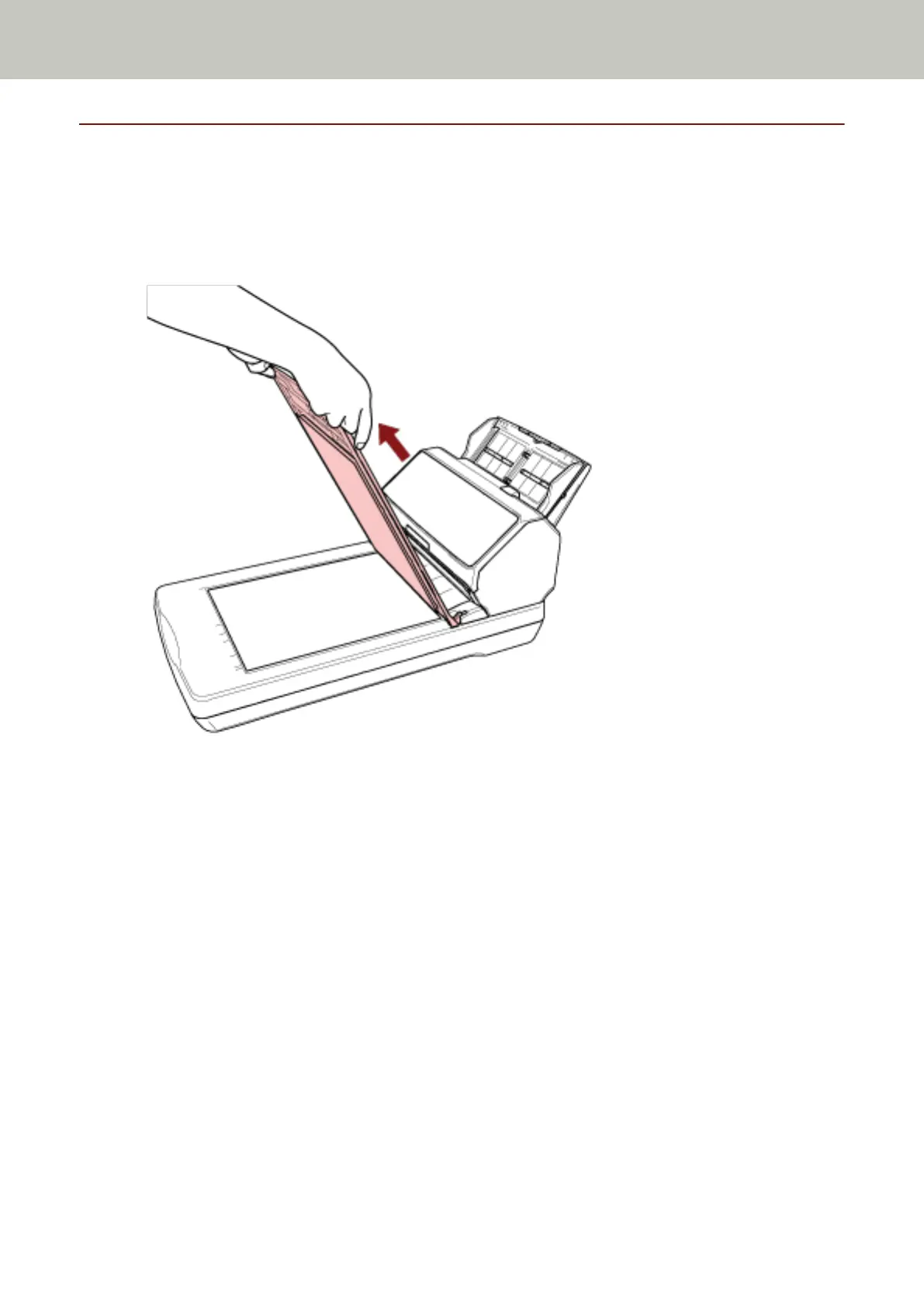

2 Remove the document cover by pulling it out in the direction of the arrow.

3 Place a document on the document bed.

Various Ways to Scan

198
