Outer Dimensions

The outer dimensions are as follows:

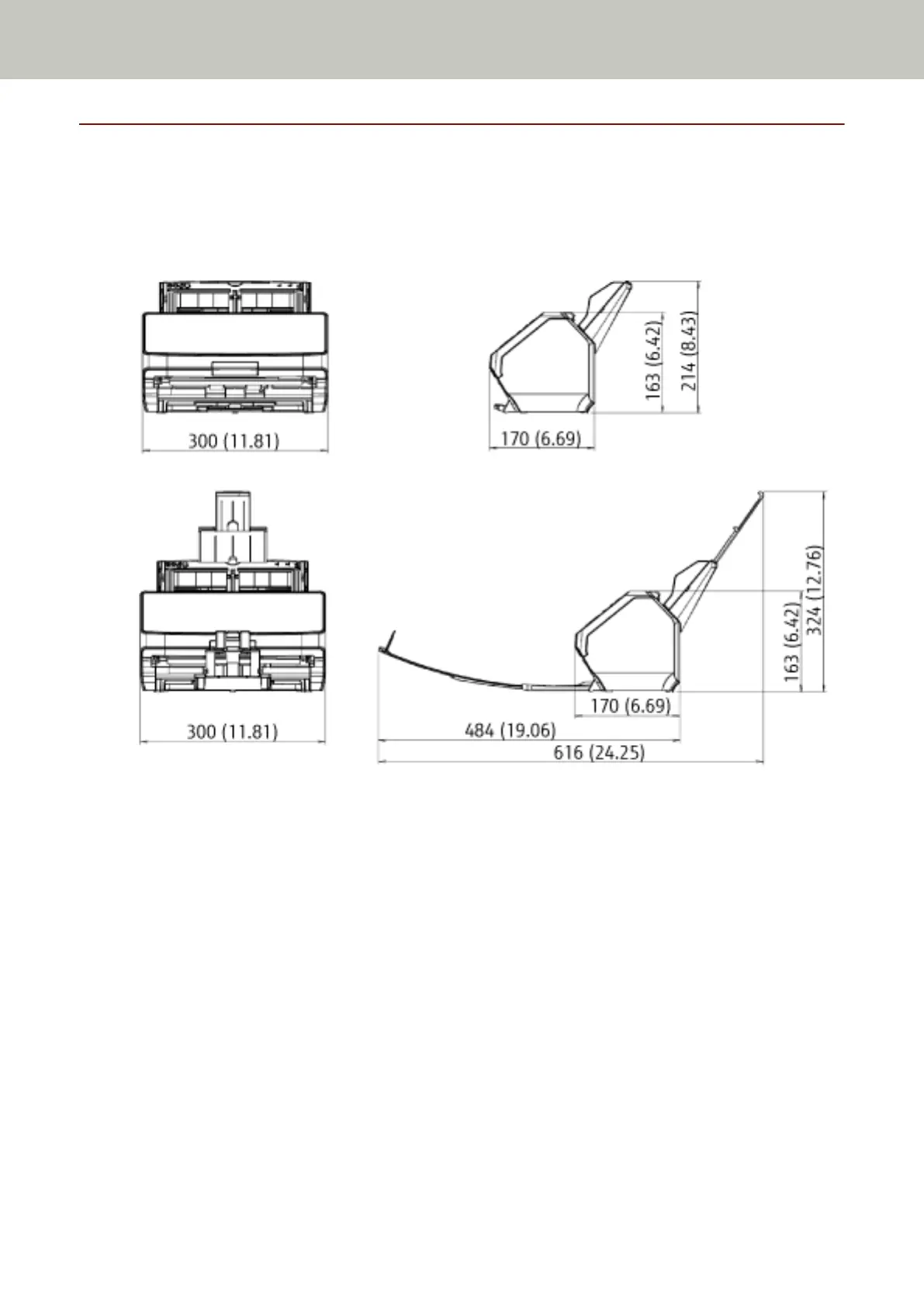

Outer Dimensions [fi-8190/fi-8170/fi-8150/fi-8150U]

Unit: mm (in.)

Appendix

425
