Fujitsu fi-8170 User Manual

Connecting the Scanner via a Wired LAN in Order to Operate It with a Computer
(When Assigning an IP Address Manually) [fi-8190/fi-8290/fi-8170/fi-8270/
fi-8150/fi-8250]
This section explains about the setup procedure for you to connect the scanner to a network device via a wired LAN
in order to operate the scanner with a computer and manually assign an IP address to the scanner.
For the procedure to unpack the scanner, refer to Getting Started.
ATTENTION
If an old version of the software is installed, uninstall it first.
For the procedure to uninstall the software, refer to Uninstalling the Software (page 429).
1 Turn on the computer and log onto Windows as a user with administrator privileges.
2 Insert the Setup DVD-ROM into the DVD drive.

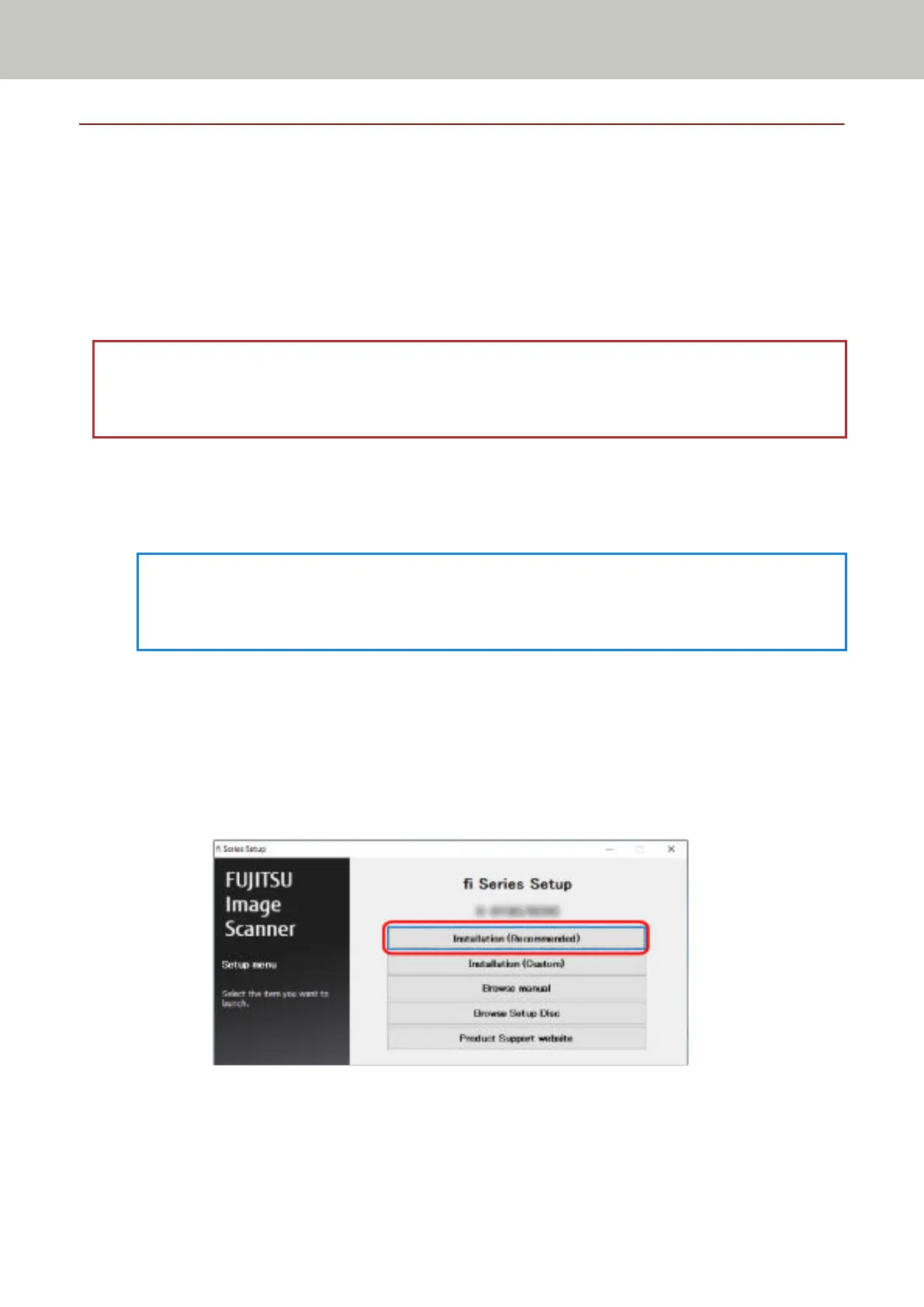

The [fi Series Setup] window appears.
HINT
If the [fi Series Setup] window does not appear, double-click "Setup.exe" in the Setup DVD-ROM via [File
Explorer] or [Computer].
3 Click the scanner model name to be used (if the window for selecting a model name is displayed).
4 Select either [Installation (Recommended)] or [Installation (Custom)].
● For [Installation (Recommended)]
Select [Installation (Recommended)] to install all the software required to operate the scanner.
a Click the [Installation (Recommended)] button.
b Install the software by following the instructions displayed in the window.
The [How to Connect the Scanner] window appears when the installation of the software is
complete.
Scanner Setup
52

Fujitsu fi-8170 Specifications

General

Duplex scanning	Yes
Maximum scan size	216 x 355.6 mm
ADF scan speed (b/w, A4)	70 ppm
Optical scanning resolution	600 x 600 DPI
Black/white scanning color modes	Grayscale, Monochrome
Control type	Buttons
Scanner type	ADF + Manual feed scanner
Product color	Black, Grey
Sensor type	Dual CIS
Scan drivers	ISIS, TWAIN
Scan file formats	JPEG, PDF, PNG, TIFF
Daily duty cycle (max)	- pages
Scanner smart software features	Blank page detection
Auto document feeder (ADF) input capacity	100 sheets
Card thickness (max)	1.4 mm
Paper tray media weight	20 - 465 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Scanning media types supported	Business Card, Post Card(JPN)
Maximum ISO A-series paper size	A4
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-B
Input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	28 W
Sustainability certificates	ENERGY STAR, RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	163 mm
Width	170 mm
Height	300 mm
Weight	4000 g
