Parts and Functions [fi-8190/fi-8170/fi-8150/fi-8150U]
This section shows the names of the scanner parts.

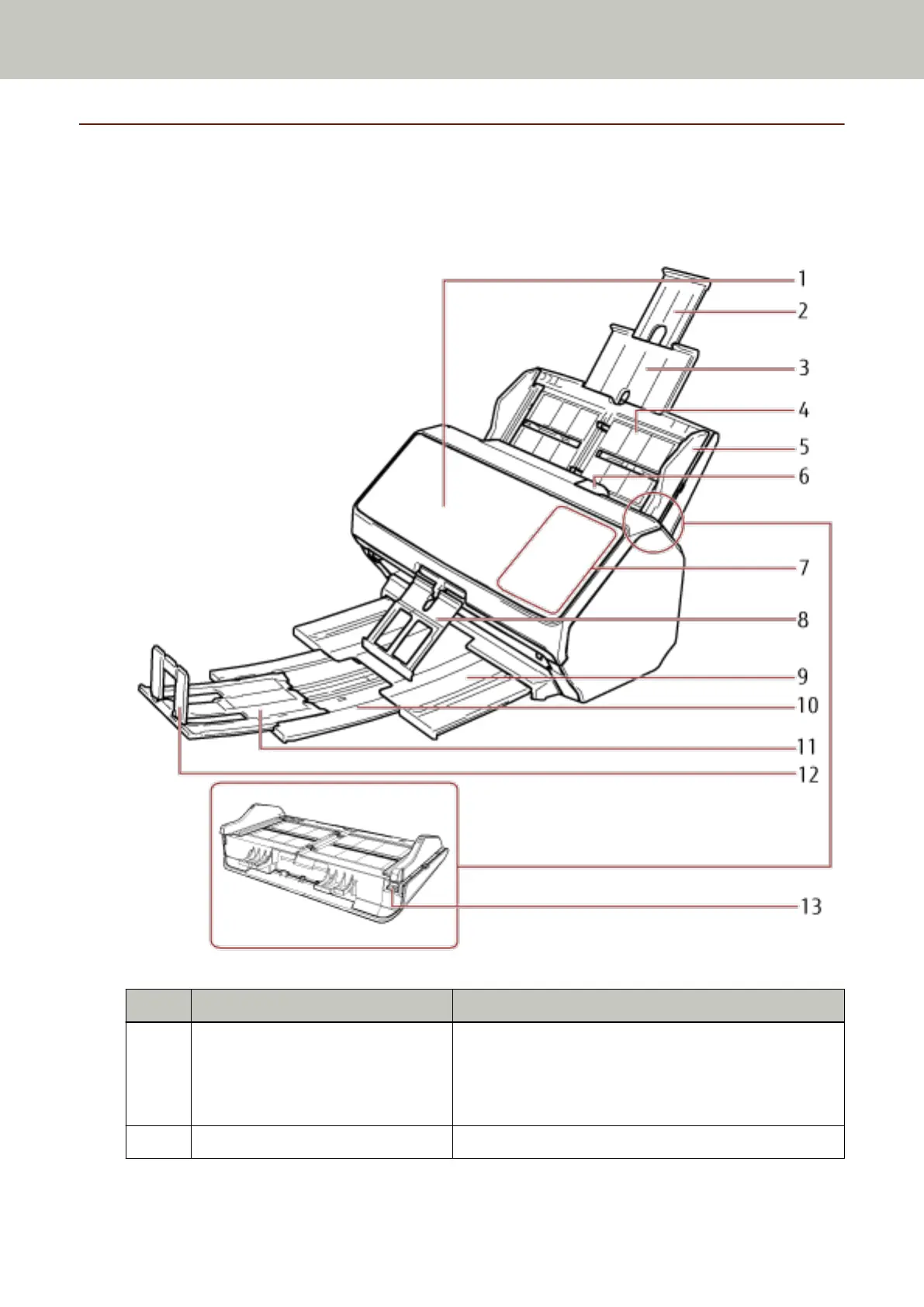

● Front
No. Name Function
1 ADF (Automatic Document Feeder) Pulls and feeds the documents one sheet at a time from
the ADF paper chute (feeder).
Open this to replace consumables or to clean the inside of
the scanner.
2 Chute extension 2 Pull out to adjust to the document length.
