Fujitsu fi-8170

No. Location
4 Document sensor (× 8)
5 Feed roller to be cleaned as you rotate the roller manually (× 2)
6 Eject roller to be cleaned as you rotate the roller manually (× 2)
7 Glass (× 2)
8 Pick roller (× 2)
9 Feed roller to be cleaned as you rotate the roller with the power turned on (× 2)
10 Eject roller to be cleaned as you rotate the roller with the power turned on (× 2)
1 Brake roller (× 2)
Remove the brake roller from the scanner.
For details about removing the brake roller, refer to Replacing the Brake Roller (page 233).

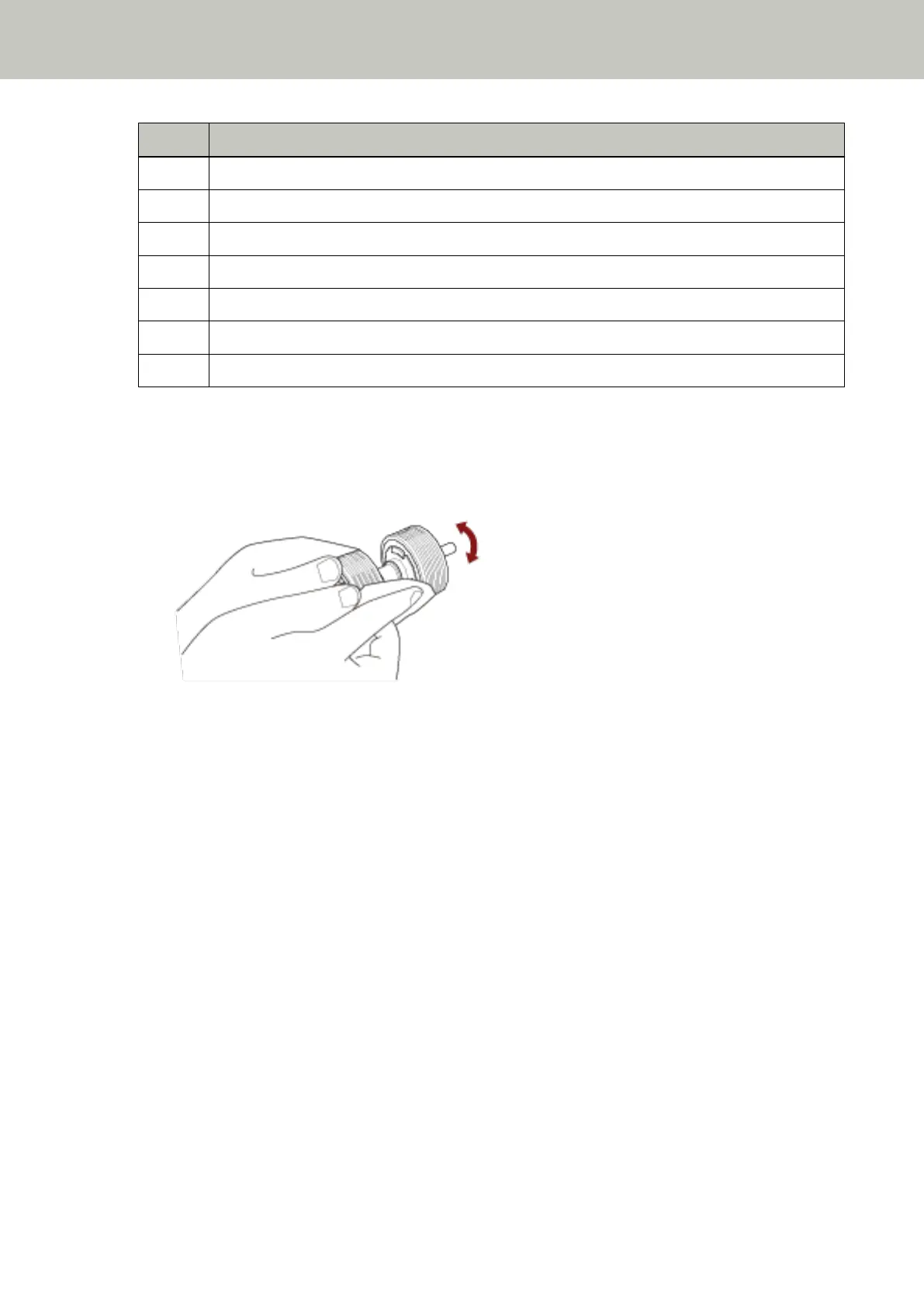

Gently wipe off any dirt or dust along the grooves, taking care not to damage the roller surface.
2 Ultrasonic sensor (× 2)
3 Document sensor (× 8) [fi-8190/fi-8290/fi-8170/fi-8270]
4 Document sensor (× 8)
Gently wipe dirt and dust off the surface of the ultrasonic and document sensors.
Daily Care
224
