Example: SAS CP500i RAID controller

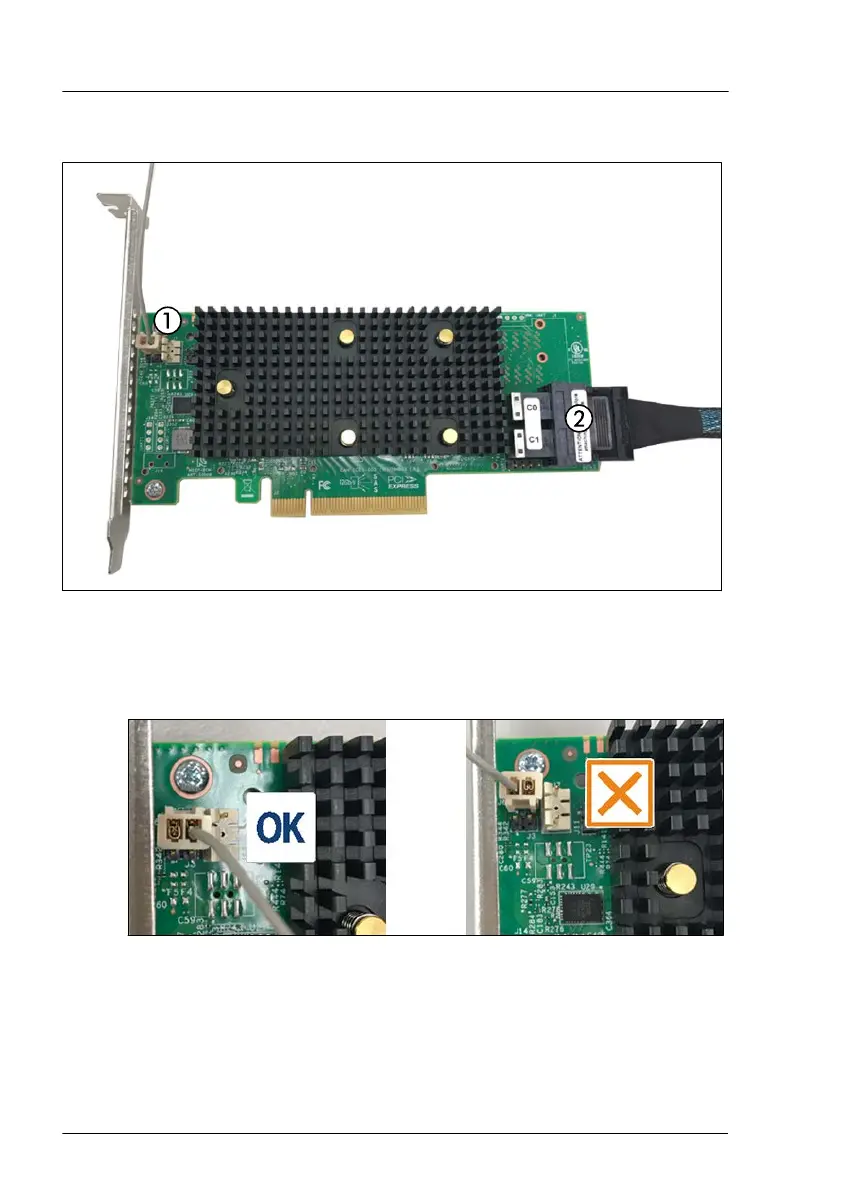

Figure 98: Connecting cables - SAS CP5xxi
â–¶
Connect the following cables:
1
If applicable, HDD LED cable
2
SAS cable
Expansion cards and backup units
198
Upgrade and Maintenance Manual
RX4770 M5
197
199
