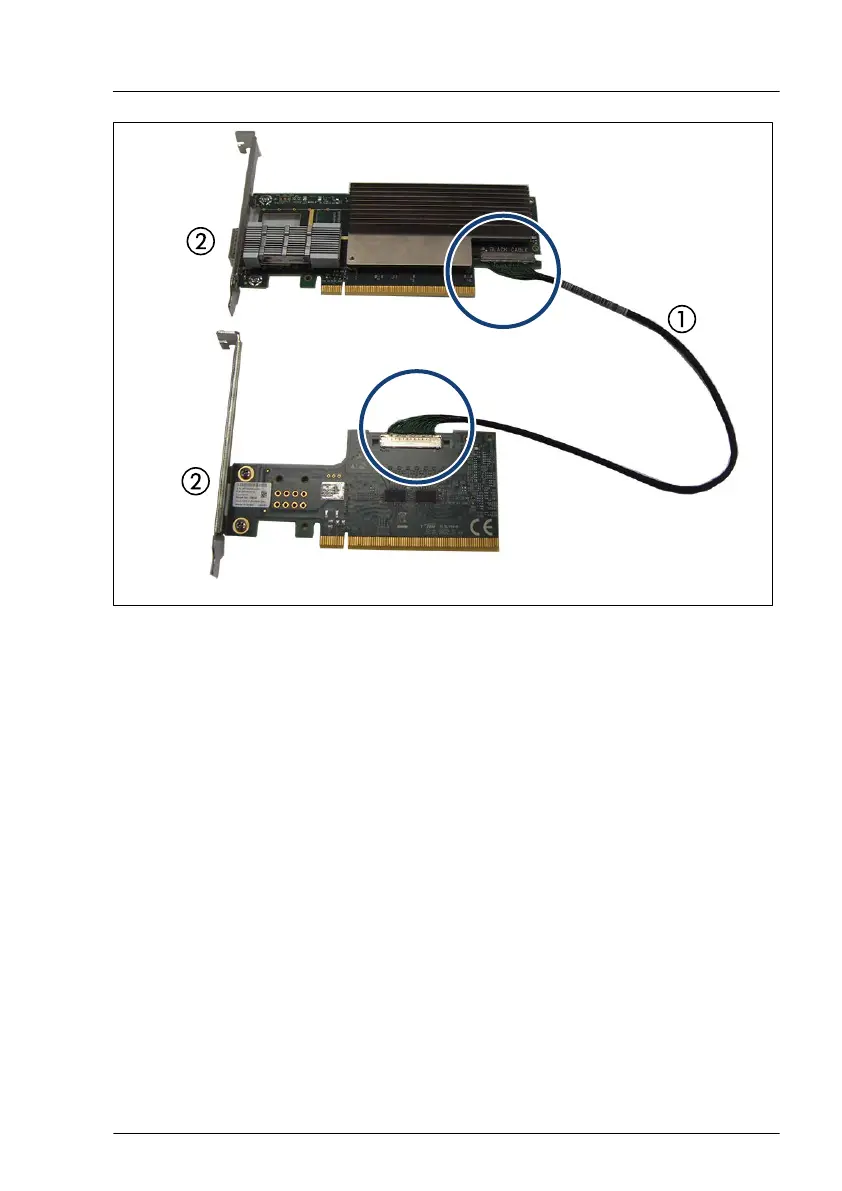

Figure 103: Infiniband ConnectX6 - connecting the black cable

▶

Connect the black cable (1) to the two Infiniband ConnectX6 controllers (2).
