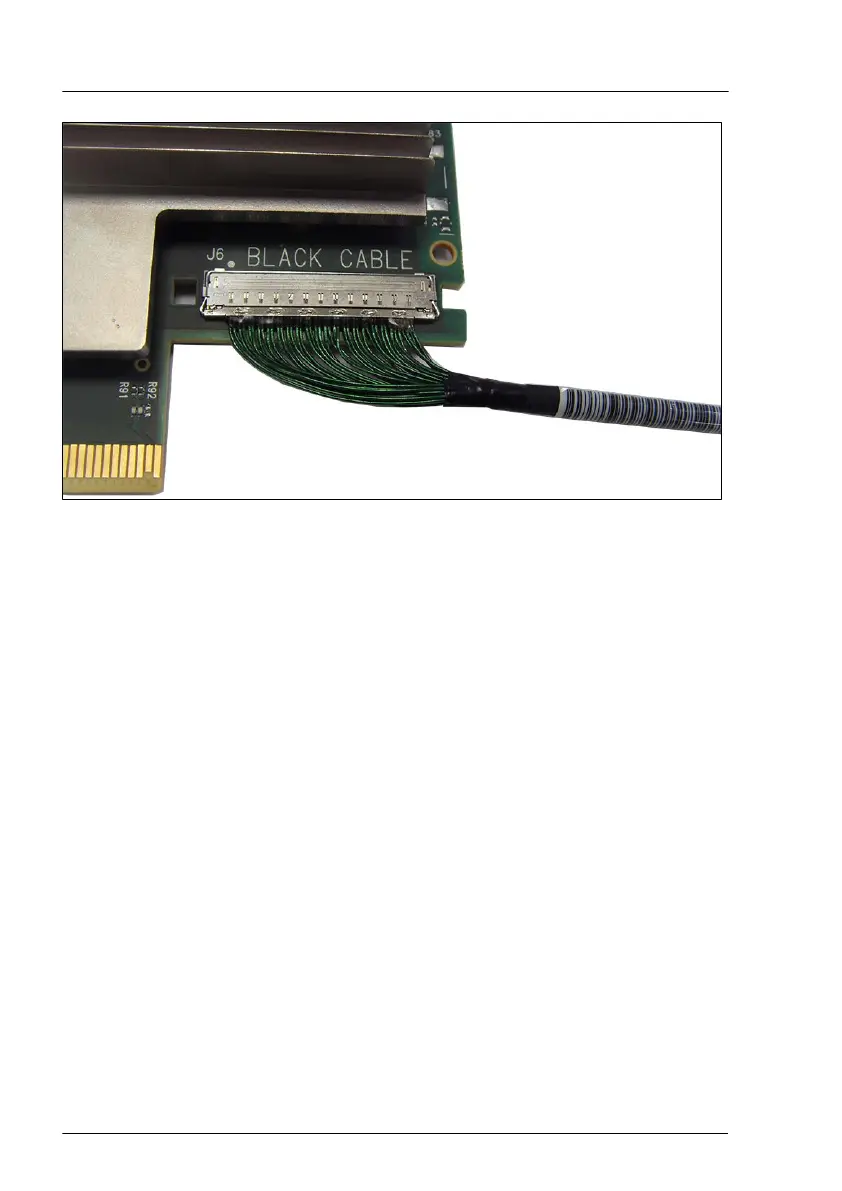

Figure 104: Infiniband ConnectX6 - fixing the black cable

▶

Press down the clip of the black cable on the controller

Expansion cards and backup units

204 Upgrade and Maintenance Manual RX4770 M5
