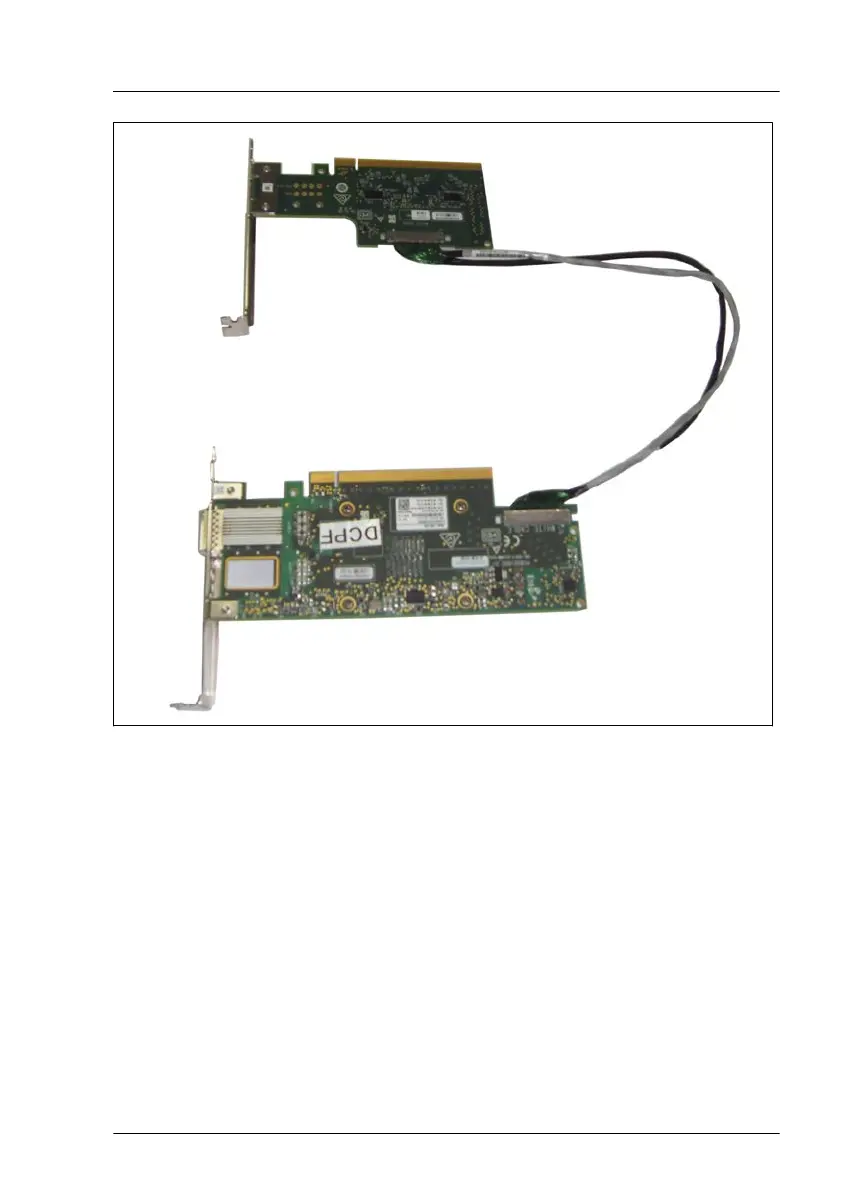

Figure 105: Infiniband ConnectX6 - black and white cable connected

▶

The black cable and the white cable are connected to the two Infiniband

ConnectX6 controllers.

Expansion cards and backup units

RX4770 M5 Upgrade and Maintenance Manual 205
