Infiniband ConnectX6 controller connection slot 1 / slot 5 or slot 4 / slot 7

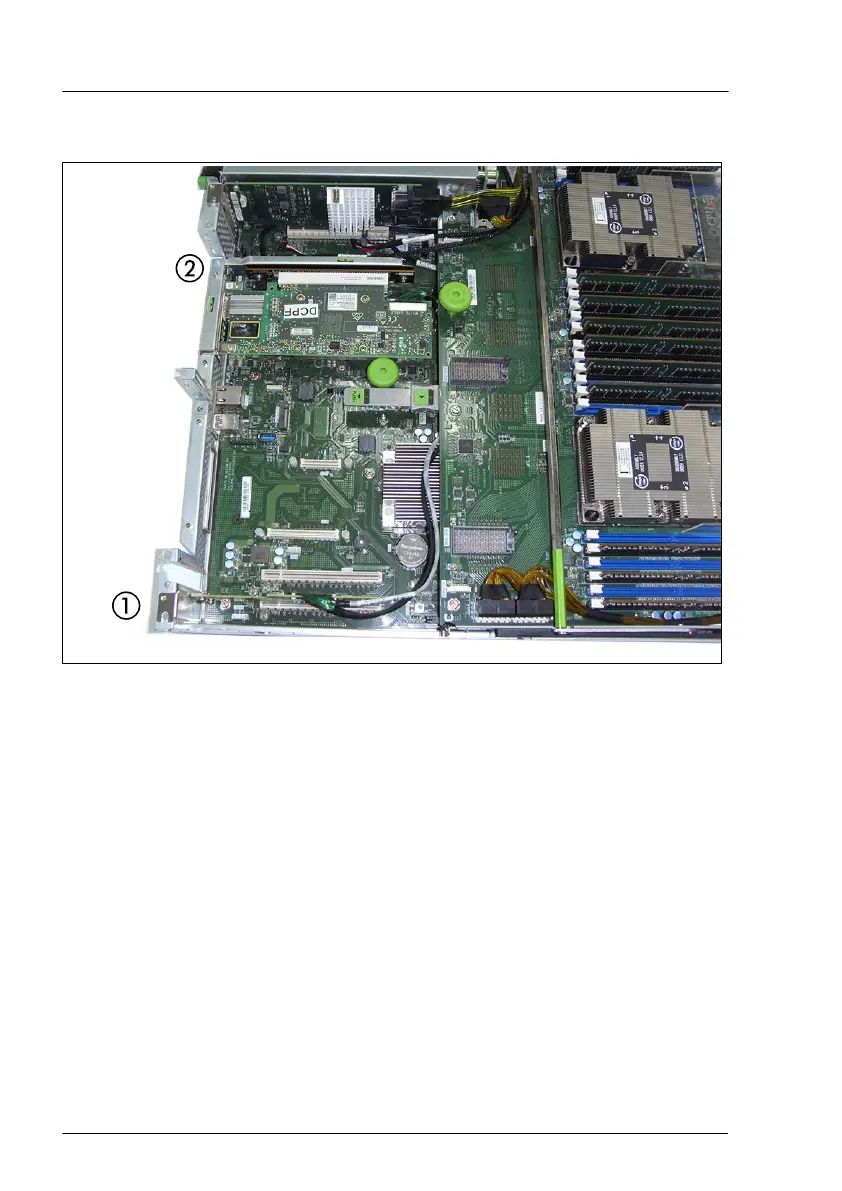

Figure 106: Infiniband ConnectX6 - slots

▶

Infiniband ConnectX6 controller one set is installed in slot 1 (CPU 1) (1) and

slot 5 (CPU 2) (2).

Expansion cards and backup units

206 Upgrade and Maintenance Manual RX4770 M5
