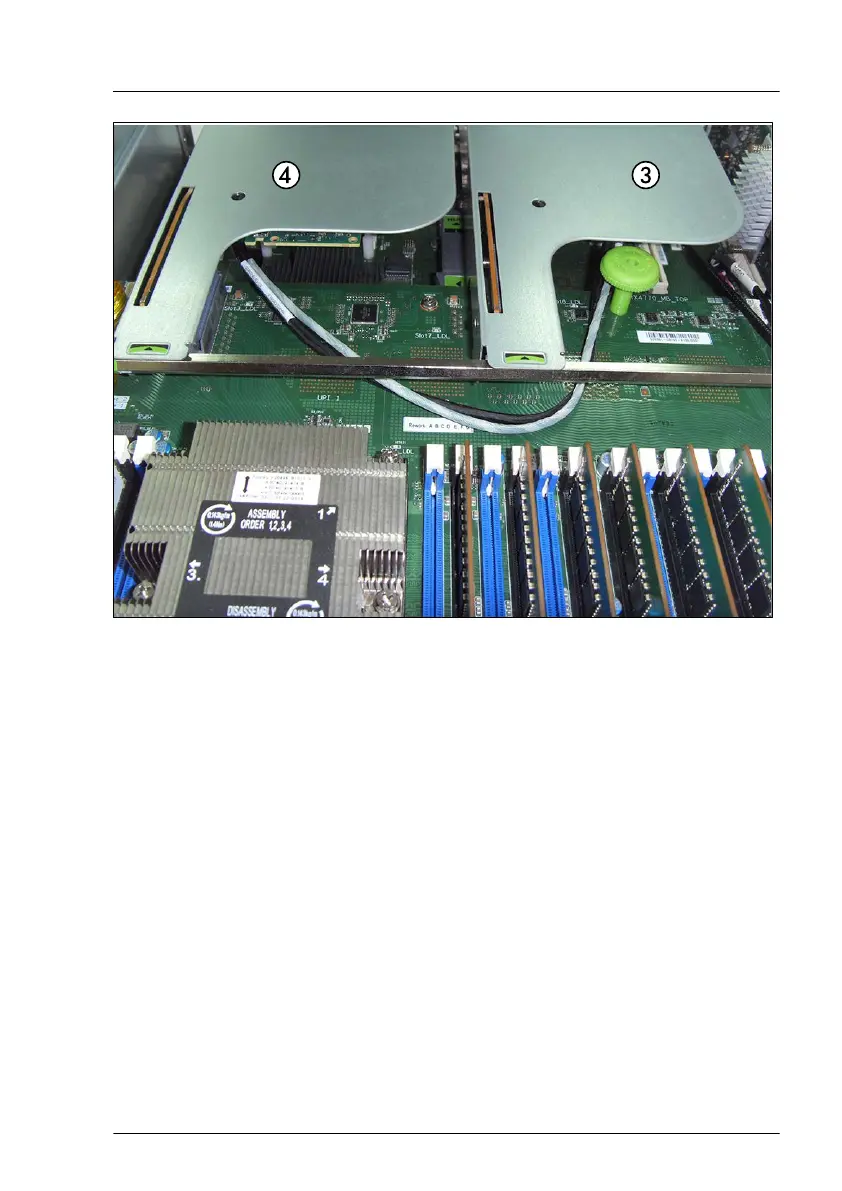

Figure 107: Infiniband ConnectX6 - slots

▶

Infiniband ConnectX6 controller one set is installed in slot 7(CPU 3) (3) and

slot 4 (CPU 4) (4).

Expansion cards and backup units

RX4770 M5 Upgrade and Maintenance Manual 207
