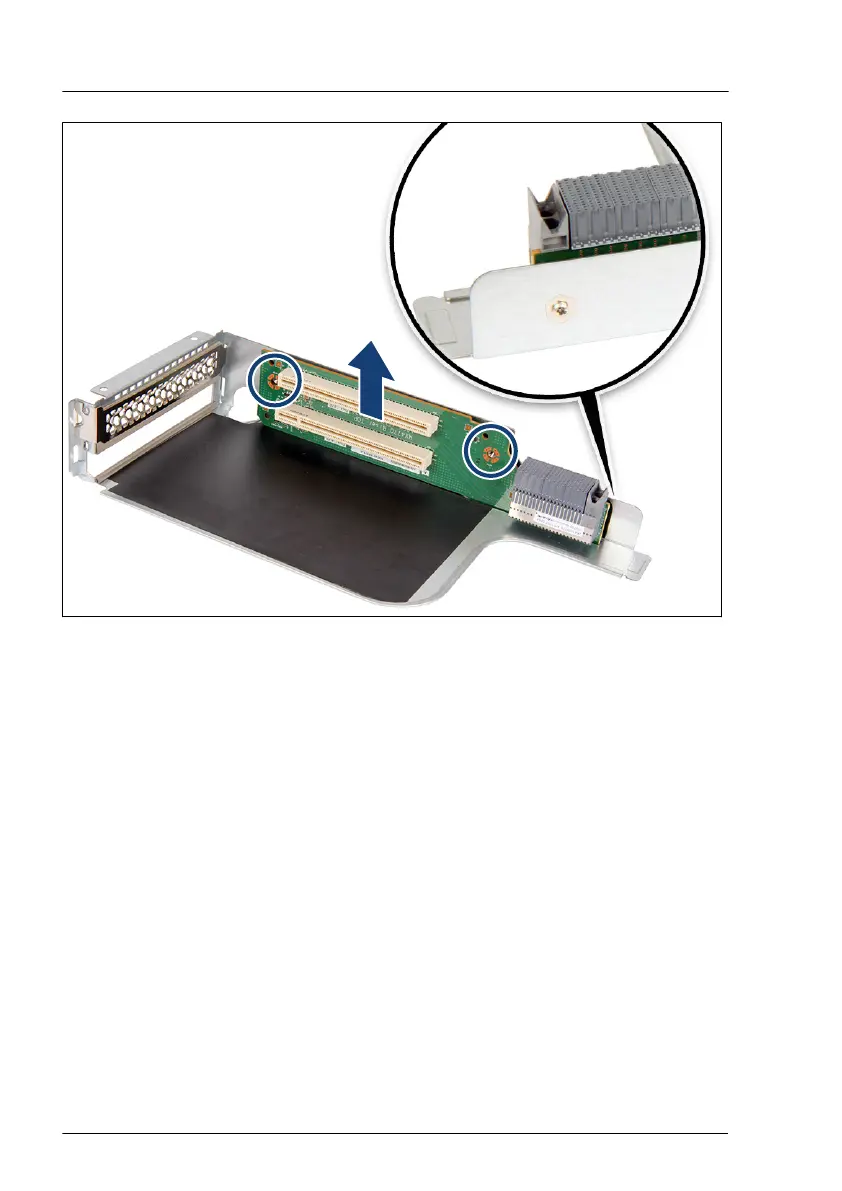

Figure 111: Removing the riser card - example: riser module 3/4
â–¶
Remove the two screws from the upper side (see circles).
â–¶
Only for riser module 3/4 and 6/7: Remove the screw from the rear side (see
close up).
â–¶
Remove the riser card.
Expansion cards and backup units
214 Upgrade and Maintenance Manual RX4770 M5
