Installing the new riser card

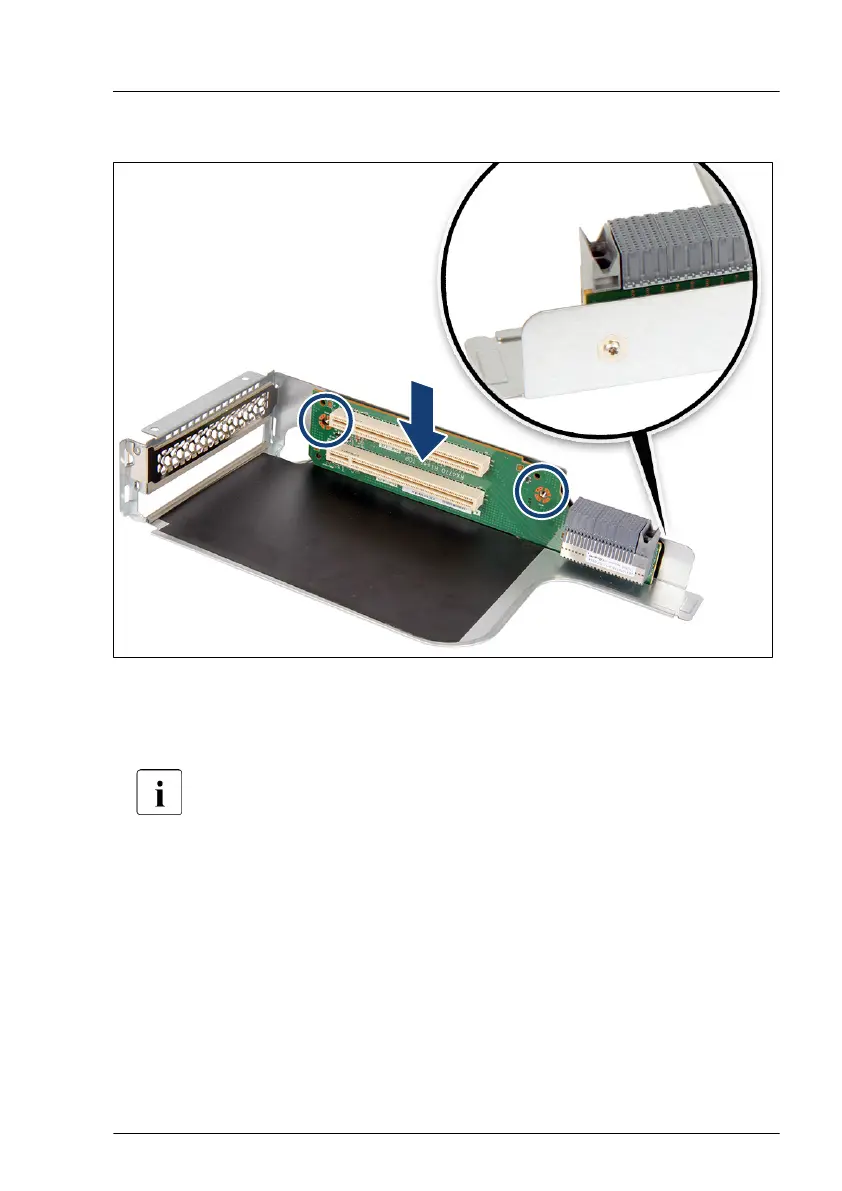

Figure 112: Installing the riser card - example: riser module 3/4
â–¶
Install the new riser card on the riser module so that the three studs on the
riser holder floor align with the screw holes of the riser card.
Riser module 3/4 and 6/7 use the same riser card model.
â–¶
Fasten the riser card on the upper side with two screws (see circles).
â–¶
Only for riser module 3/4 and 6/7: Fasten the riser card on the rear side with
one screw (see close up).
â–¶
Install the expansion card, see "Installing the expansion card" on page
192.
Expansion cards and backup units
RX4770 M5 Upgrade and Maintenance Manual 215
