Preparing the FBU

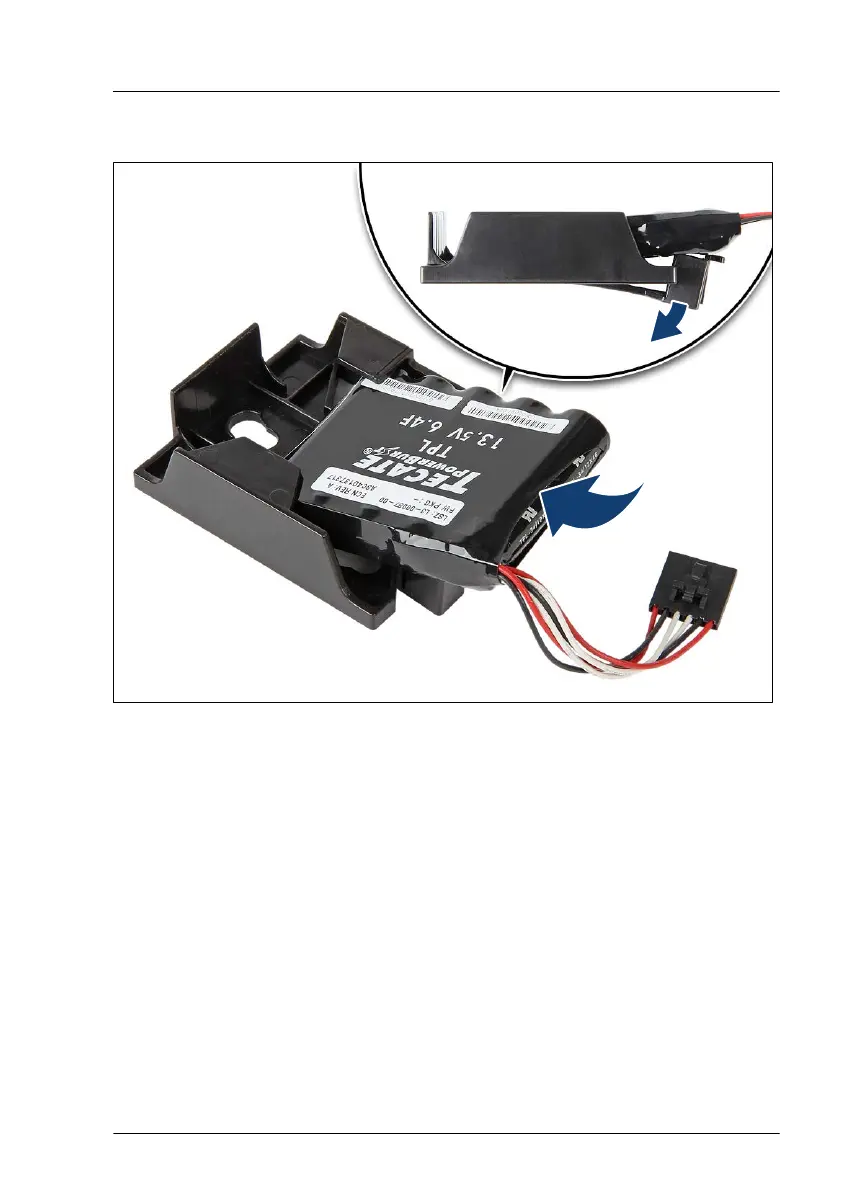

Figure 120: Installing the FBU in the holder (A)
▶
At a slight angle, fit the FBU under both retaining brackets of the holder
.
▶
Push in the FBU until it locks in place.
