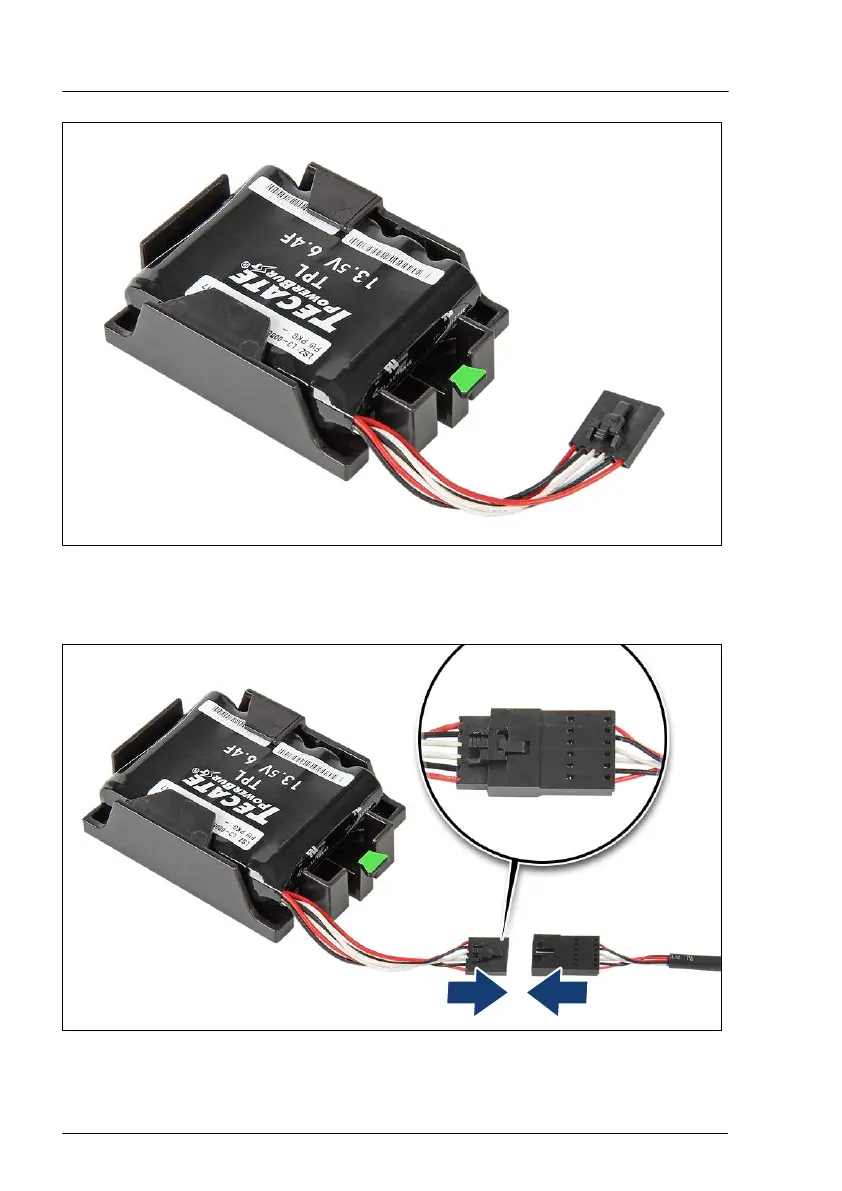

Figure 121: Installing the FBU in the holder (B)

▶

Ensure that the FBU is properly seated in the holder as shown.

Figure 122: Connecting the FBU cable to the FBU

Expansion cards and backup units

226 Upgrade and Maintenance Manual RX4770 M5
