Connect the cable end on the FBU to the FBU cable as shown.
Removing the FBU carrier
▶
If necessary
, remove all FBU cables from the existing RAID controllers.

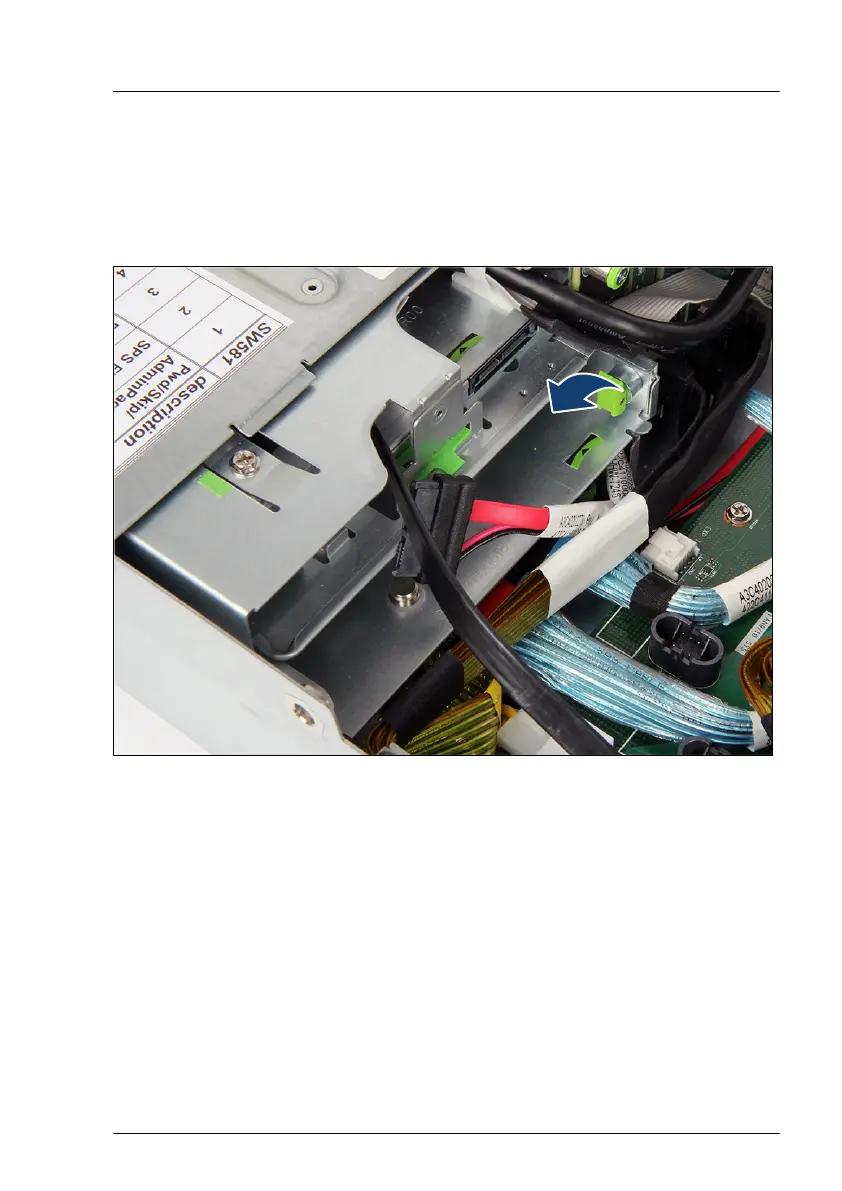

Figure 123: Releasing the FBU carrier
▶
Release the locking lever on the right side of the FBU carrier in the direction
of the arrow
.
Expansion cards and backup units
RX4770 M5 Upgrade and Maintenance Manual 227
