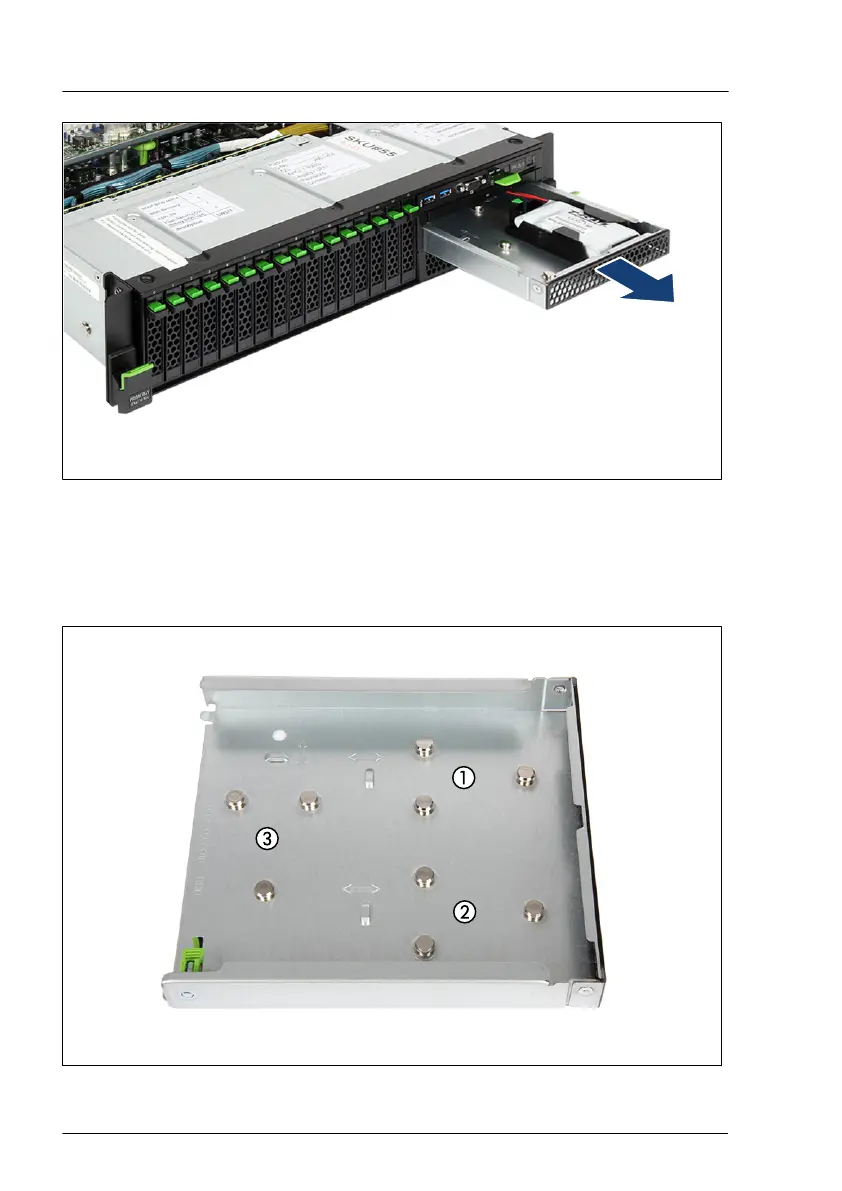

Figure 124: Removing the FBU carrier
▶
Push the FBU carrier from inside out of the chassis (see arrow).
Installing the FBU
Figure 125: FBU mounting order
