Removing the FBU with the holder

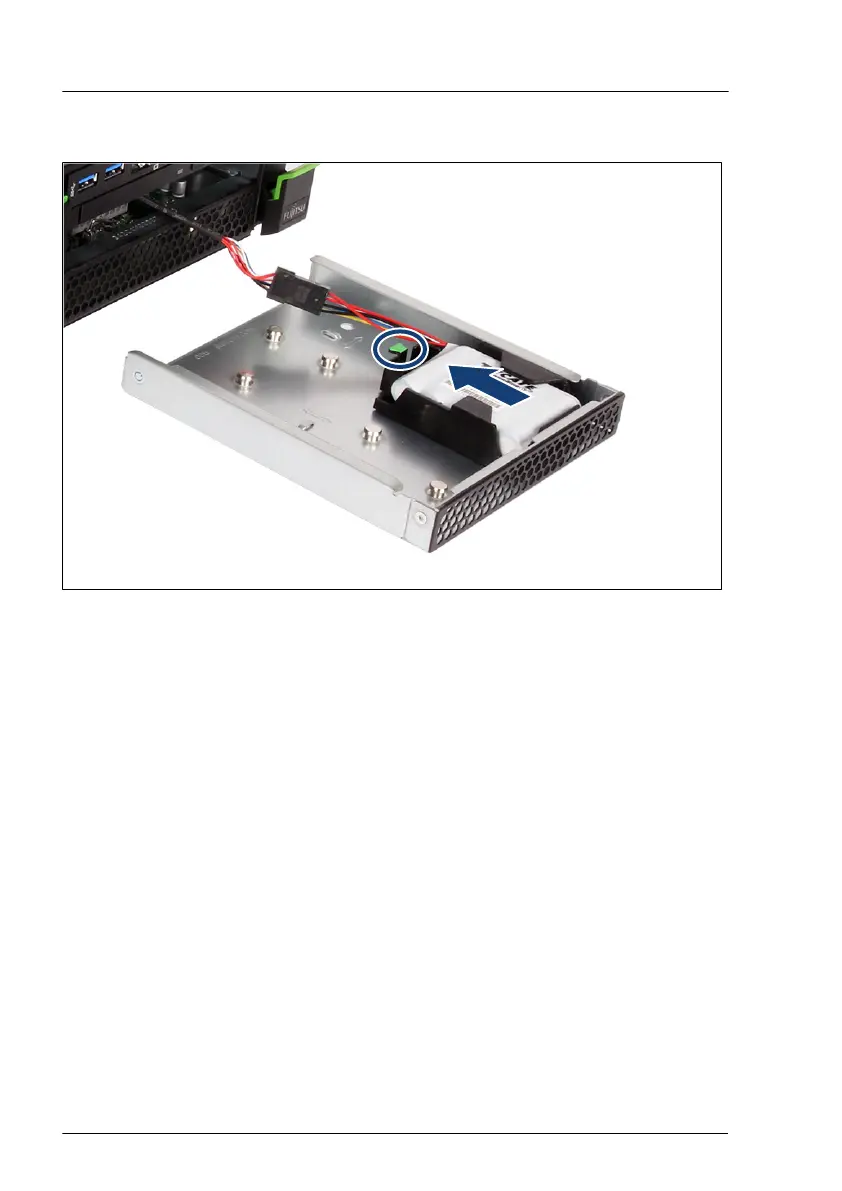

Figure 130: Removing the FBU with the holder
â–¶
Lift up the green locking handle on the holder (see circle) while sliding the
holder in direction of the arrow as far as it will go.
â–¶
Lift the holder out of the FBU module.
Expansion cards and backup units
234
Upgrade and Maintenance Manual
RX4770 M5
