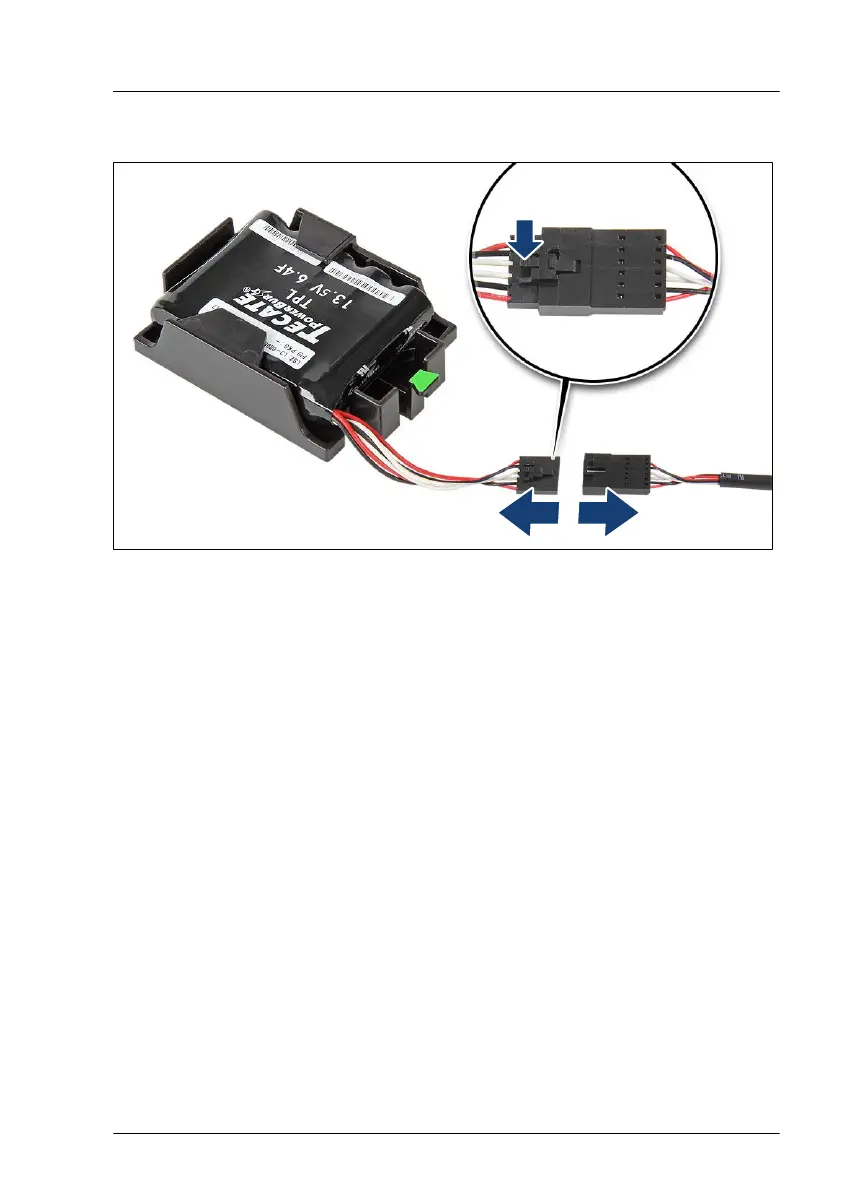

Disconnecting the FBU cable from the FBU

Figure 131: Disconnecting the FBU cable from the FBU

▶

Disconnect the FBU cable from the FBU.

Expansion cards and backup units

RX4770 M5 Upgrade and Maintenance Manual 235
