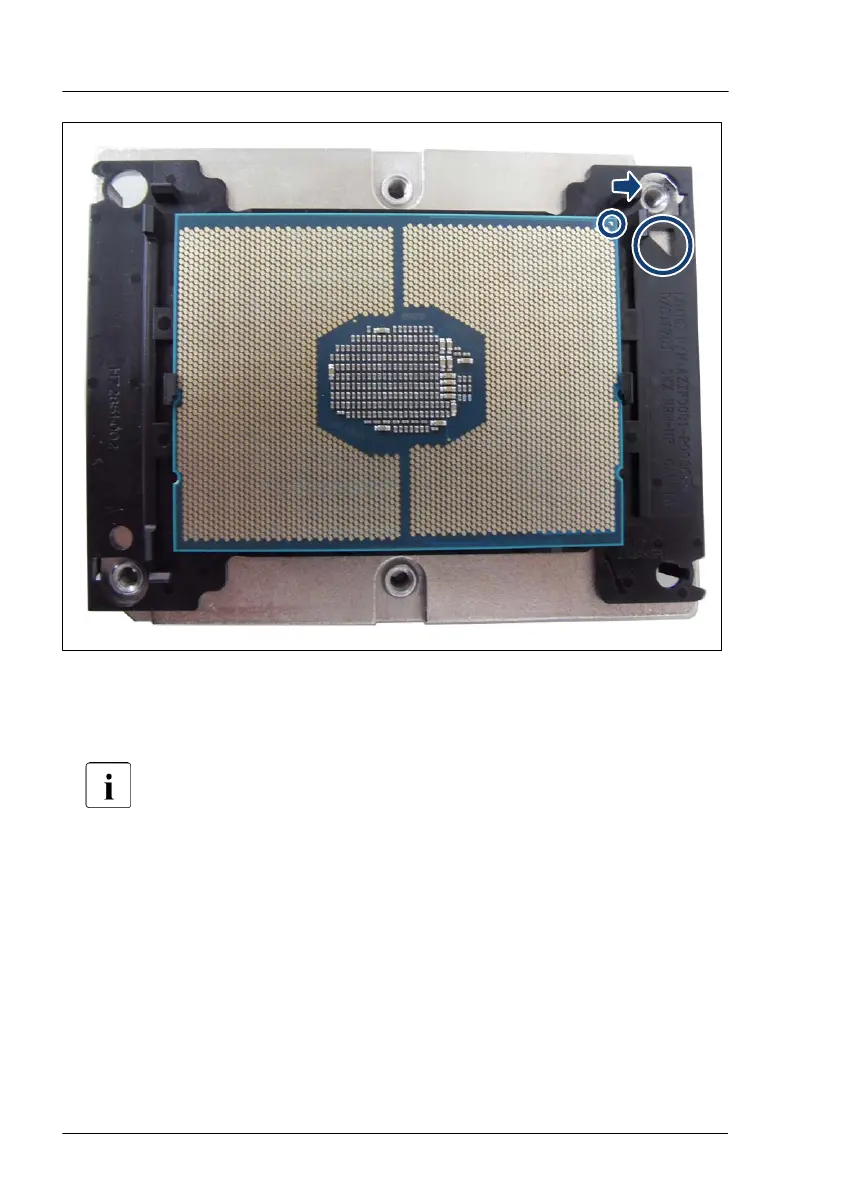

Figure 147: Installing the CPU frame on the heat sink (A)
▶
Position the CPU frame on the heat sink. Ensure that the triangle marks on
heat sink and on CPU frame are on the same edge (see circles).
CPU H/S top side: the arrow marks the number 1 screw location.
Processor (CPU)
276 Upgrade and Maintenance Manual RX4770 M5
