Fujitsu PRIMERGY RX4770 M5 - Page 277

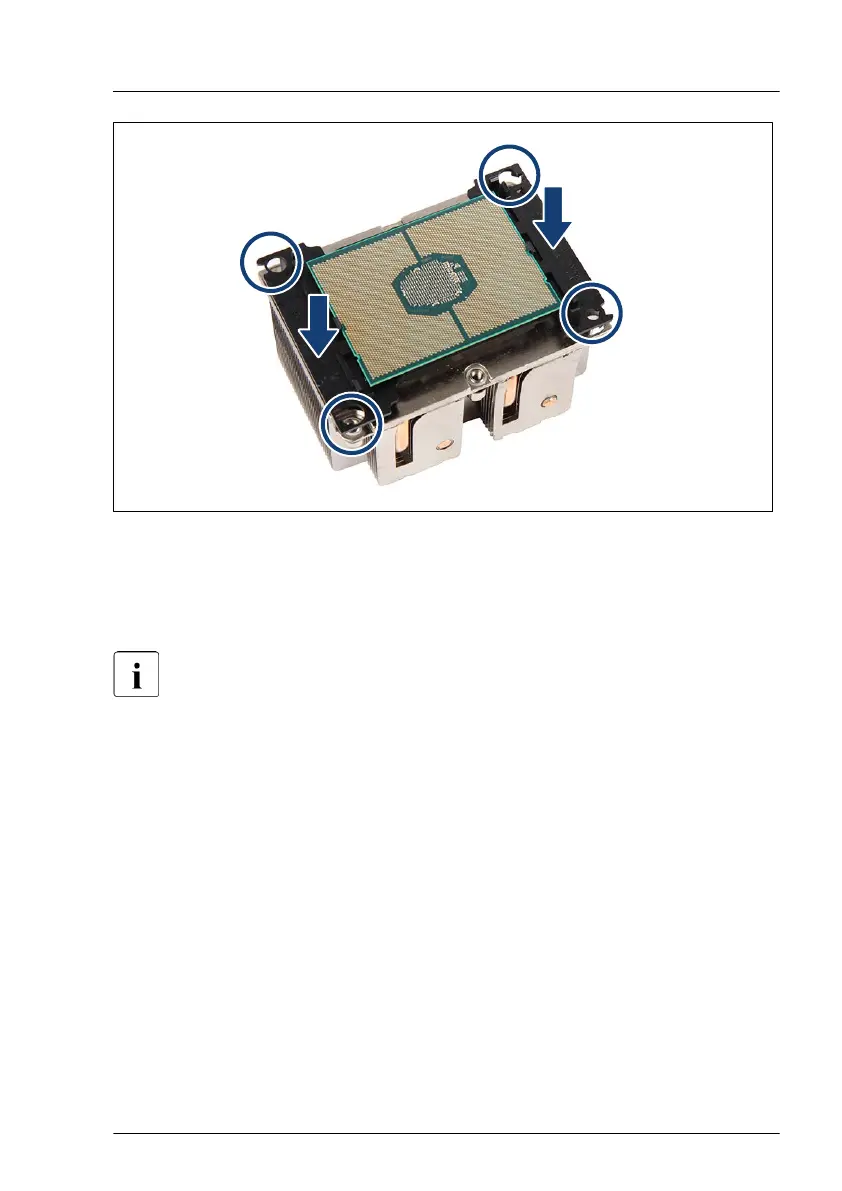

Figure 148: Installing the CPU frame (B)
▶
Press down the CPU frame (see arrows).
The frame must click into place (see circles).
Take care of the right position. There is only one position which fits.
Processor (CPU)
RX4770 M5 Upgrade and Maintenance Manual 277
