Removing the CPU

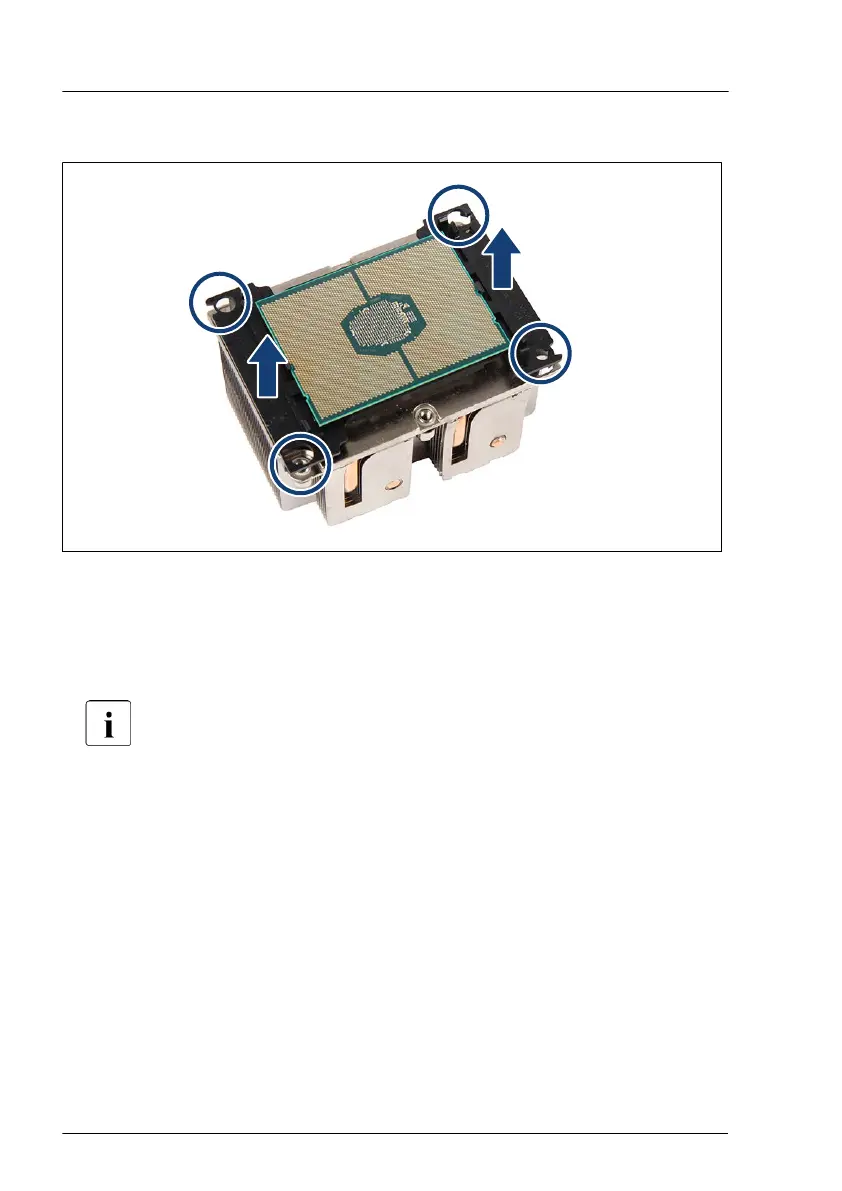

Figure 153: Removing the CPU frame
â–¶
Release the four hooks (see circles).
â–¶
Carefully twist the CPU back and forth to detach the CPU frame from the
heat sink (see arrows).
This may be necessary due to the adhesive quality of the thermal
paste located between the heat sink and CPU.
Processor (CPU)
284
Upgrade and Maintenance Manual
RX4770 M5
283
285
