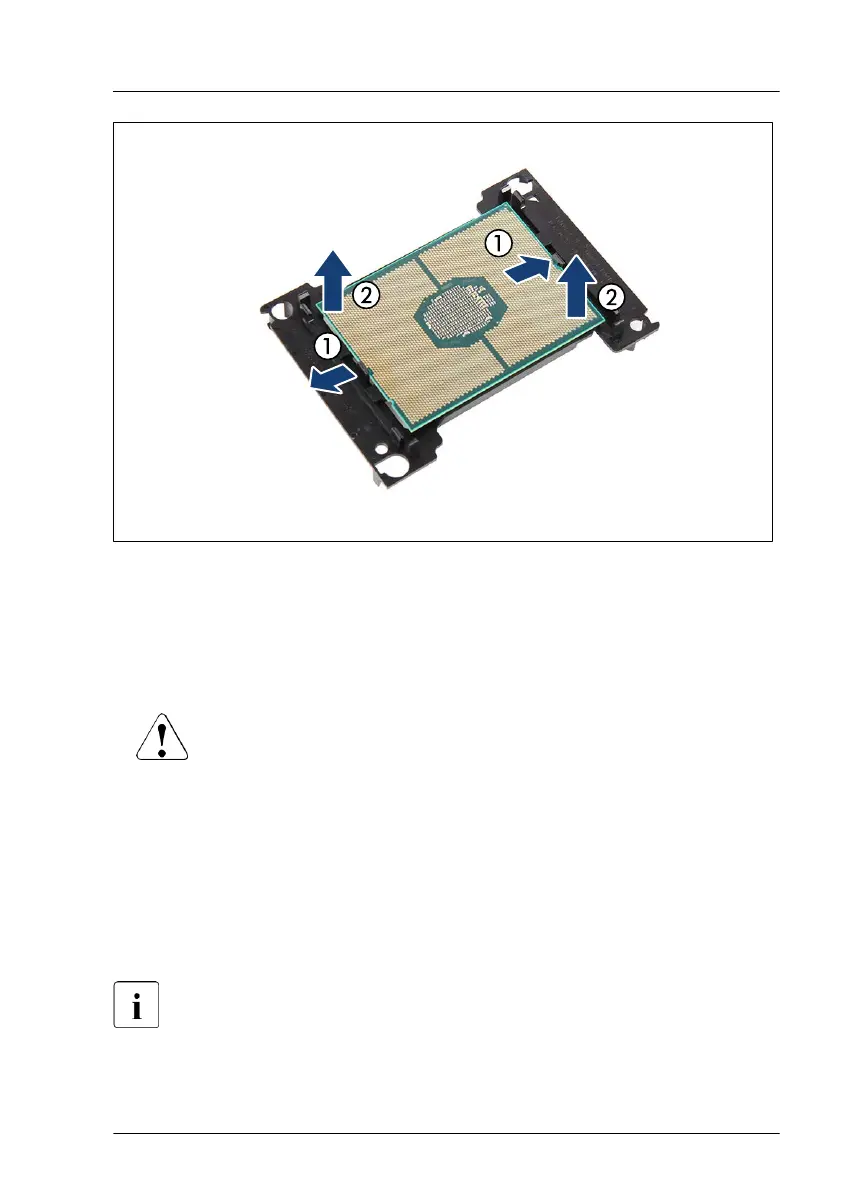

Figure 154: Removing the CPU
â–¶
Press the two noses in the direction of the arrows (1) and remove the CPU
from the CPU frame (2).
â–¶
Clean residual thermal paste from the CPU surface using a lint-free cloth
and store the CPU in a save place.
CAUTION
CPUs are extremely sensitive to electrostatic discharge and therefore
must always be handled with care.
â–¶
After a CPU has been removed from its protective sleeve or from
its socket, place it upside down on a nonconducting, antistatic
surface.
â–¶
Never push a CPU over a surface.
Applying the thermal paste to the CPU surface
For Japan, the service engineer must follow the instruction provided
separately
.
Processor (CPU)
RX4770 M5 Upgrade and Maintenance Manual 285
