"Disconnecting the power cord" on page
46.
▶
"Getting access to the component" on page 47.
▶
Remove the air duct from the top system board, see "Removing the CPU
air duct" on page 72.
▶
"Removing the fan cage" on page 69.
Removing the dummy cover

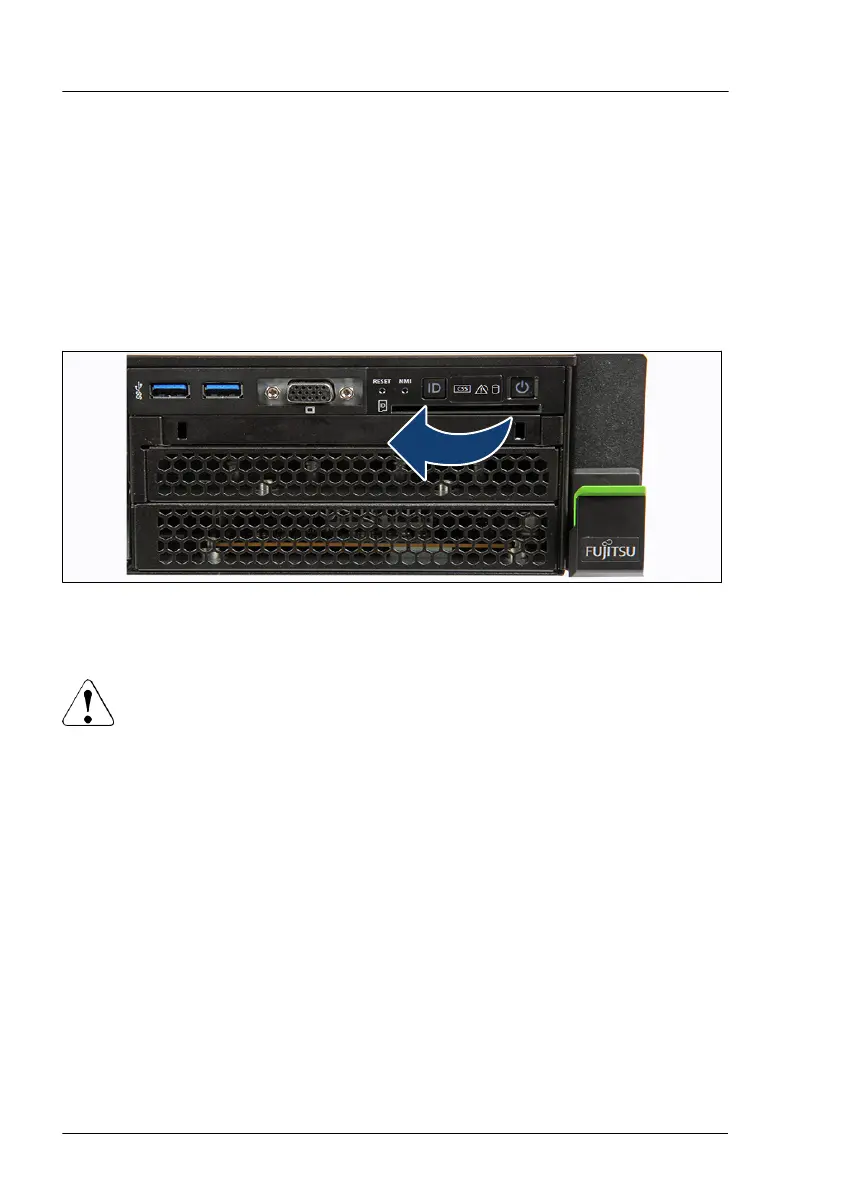

Figure 160: Removing the dummy cover
▶
Pull the ODD dummy cover out of the bay
.
CAUTION
▶
Keep the dummy cover for future use.
▶
If you remove the accessible drive again and do not replace it with
a new one, the dummy cover must be reinstalled to comply with
EMC regulations and to satisfy cooling requirements and fire
protection measures.
Installing the ODD
▶
If no ODD has been installed before:
▶
Remove the two screws and take the ODD latch from the bottom plate of
the ODD bay (see "Storing the ODD latch").
Accessible drives
294 Upgrade and Maintenance Manual RX4770 M5
