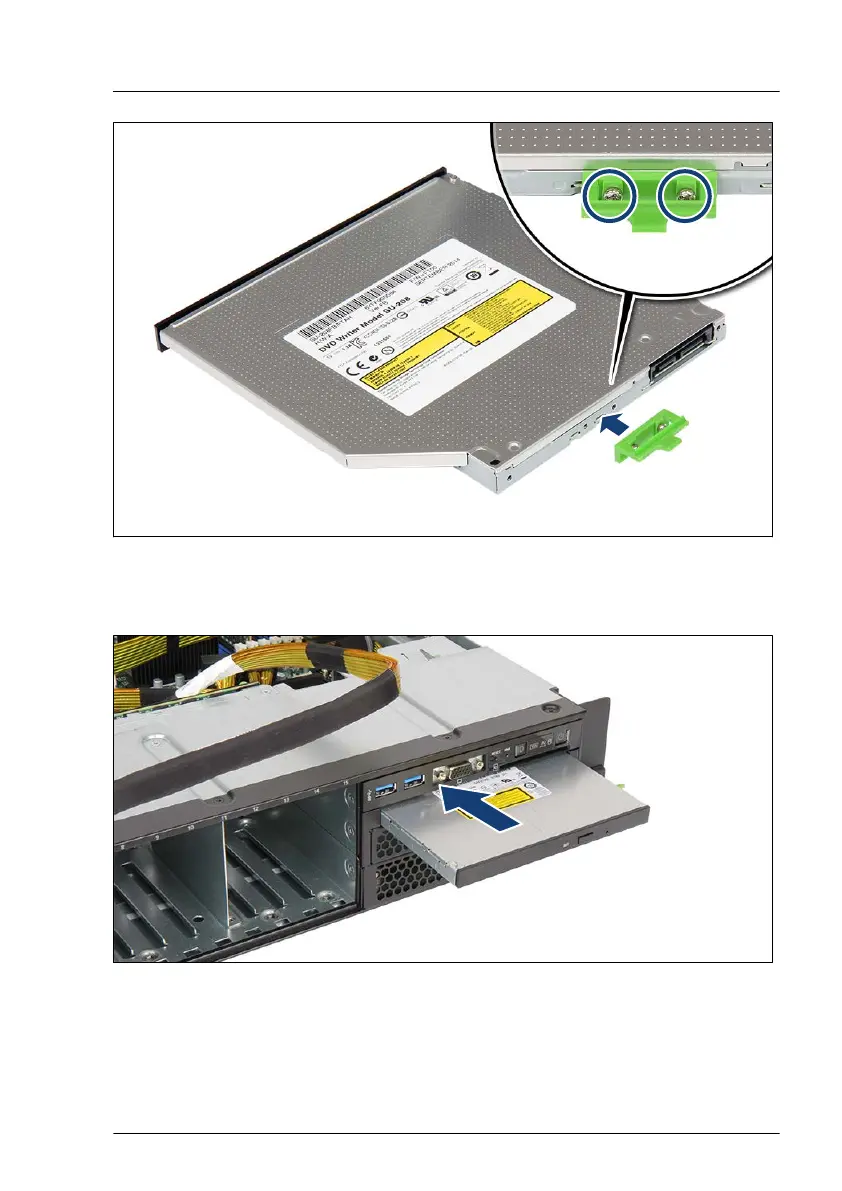

Figure 161: Installing the ODD latch on the ODD
â–¶
Fasten the ODD latch with two screws to the rear side of the ODD.
Figure 162: Installing the ODD
â–¶
Push the ODD into the bay
.
â–¶
Ensure that the ODD latch engages properly in its position.
Accessible drives
RX4770 M5
Upgrade and Maintenance Manual
295
294
296
