Fujitsu PRIMERGY RX4770 M5 - Page 307

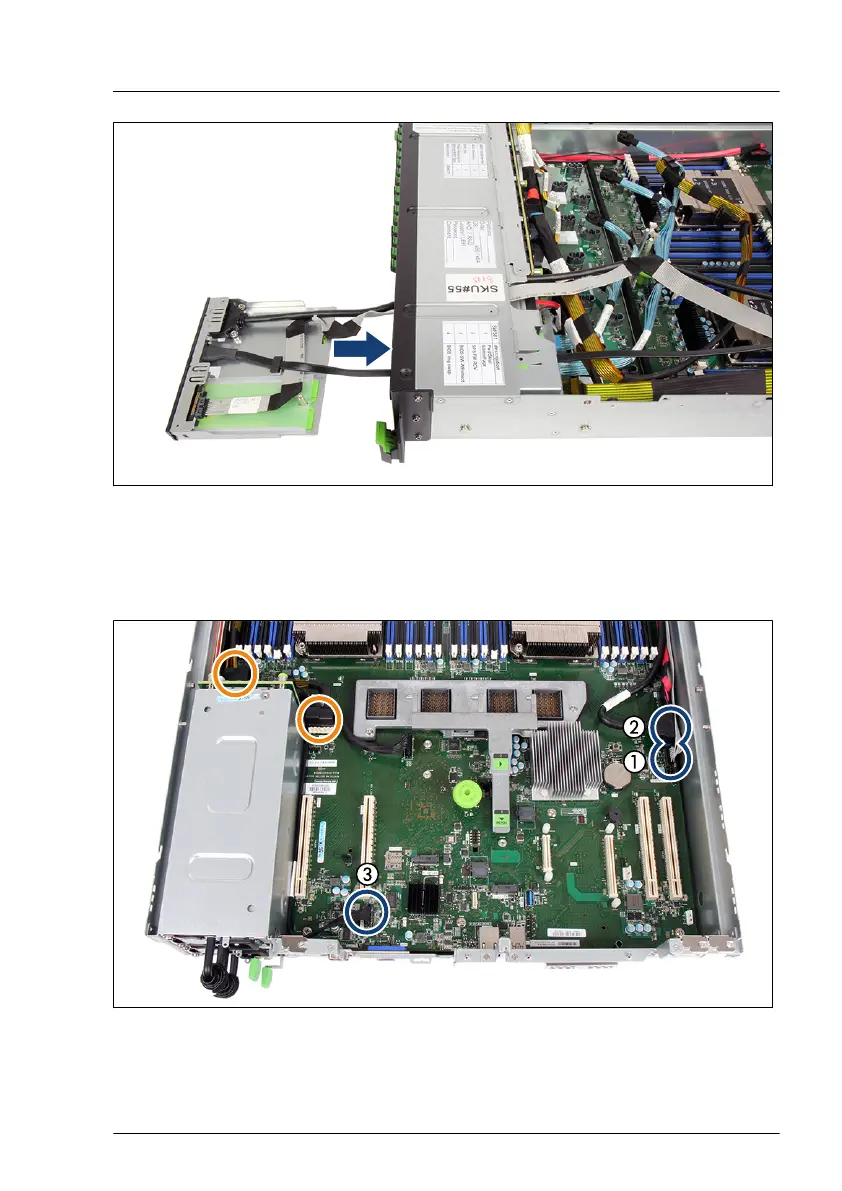

Figure 171: Installing the front panel module
▶
Push the front panel module with all cables in its bay
.
▶
Fasten the front panel module with one screw (see Figure 170).
Figure 172: Connecting cables
Front panel
RX4770 M5 Upgrade and Maintenance Manual 307
