Connect the front panel cable (1) and the front USB cable (2) to the bottom
system board.
▶
Connect the front VGA cable (3) to the bottom system board, see
Figure 172.
▶
Connect the two mini-SAS cables to the bottom system board (see orange
circles in Figure 172).
The front panel cable must run under the mini-SAS cables at the
HDD backplane.

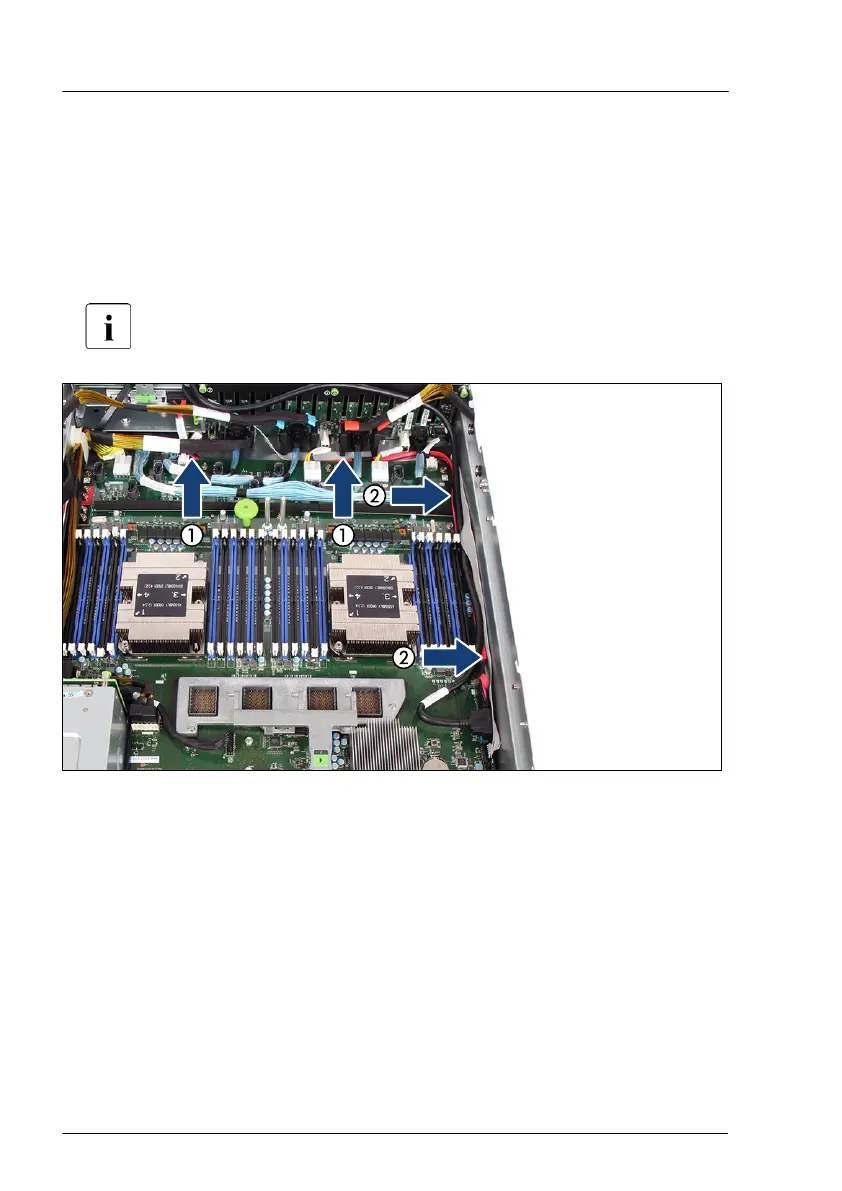

Figure 173: Routing front panel cable and USB3.0 cable
Concluding steps
▶
Connect all cables to the HDD backplane, see "Replacing the 16x 2.5-inch
HDD backplane" on page
154.
▶
If applicable, install the RAID controller in PCIe slot 8, see "Installing an
expansion card" on page 190.
▶
"Installing the top system board holder" on page 79.
▶
"Installing the fan cage" on page 71.
Front panel
308 Upgrade and Maintenance Manual RX4770 M5
