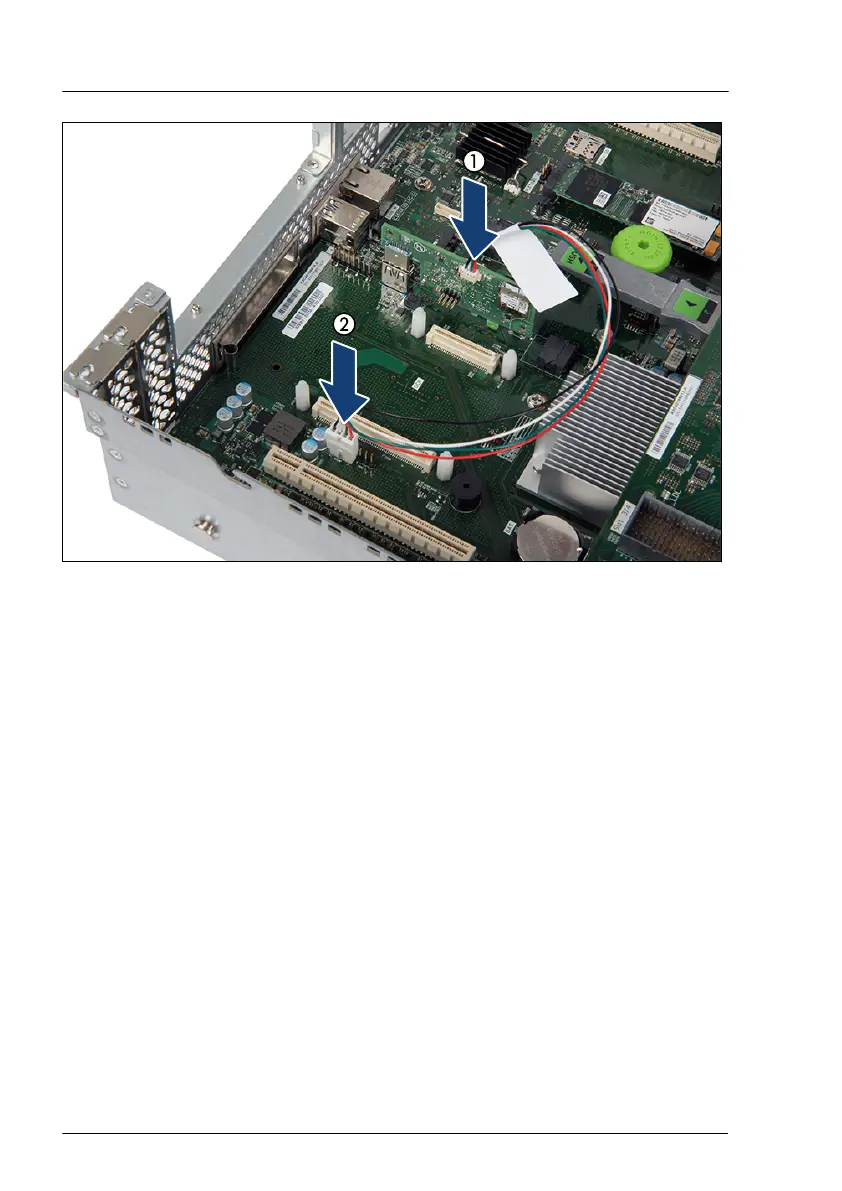

Figure 194: Installing the Dual microSD 64GB Enterprise
▶
Install the Dual microSD 64GB Enterprise into the connector "Internal USB
3.0" on the bottom system board (1).
▶
Connect the cable to the connector "ROC" on the bottom system board (2,
see also "Internal connectors of the bottom system board" on page
406).
Concluding steps
▶
Install the riser module 3/4, see "Installing the riser module 3/4 and 6/7" on
page 62.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord (AC PSU)" on page 58.
▶
"Switching on the server" on page 59.
Software configuration
In order to install the ESXi to the Dual microSD 64GB Enterprise, the VMware
ESXi installer CD is required. To obtain the ESXi installer CD by purchasing the
OEM Media Kit, or downloading the ESXi Custom Image ISO file from the
