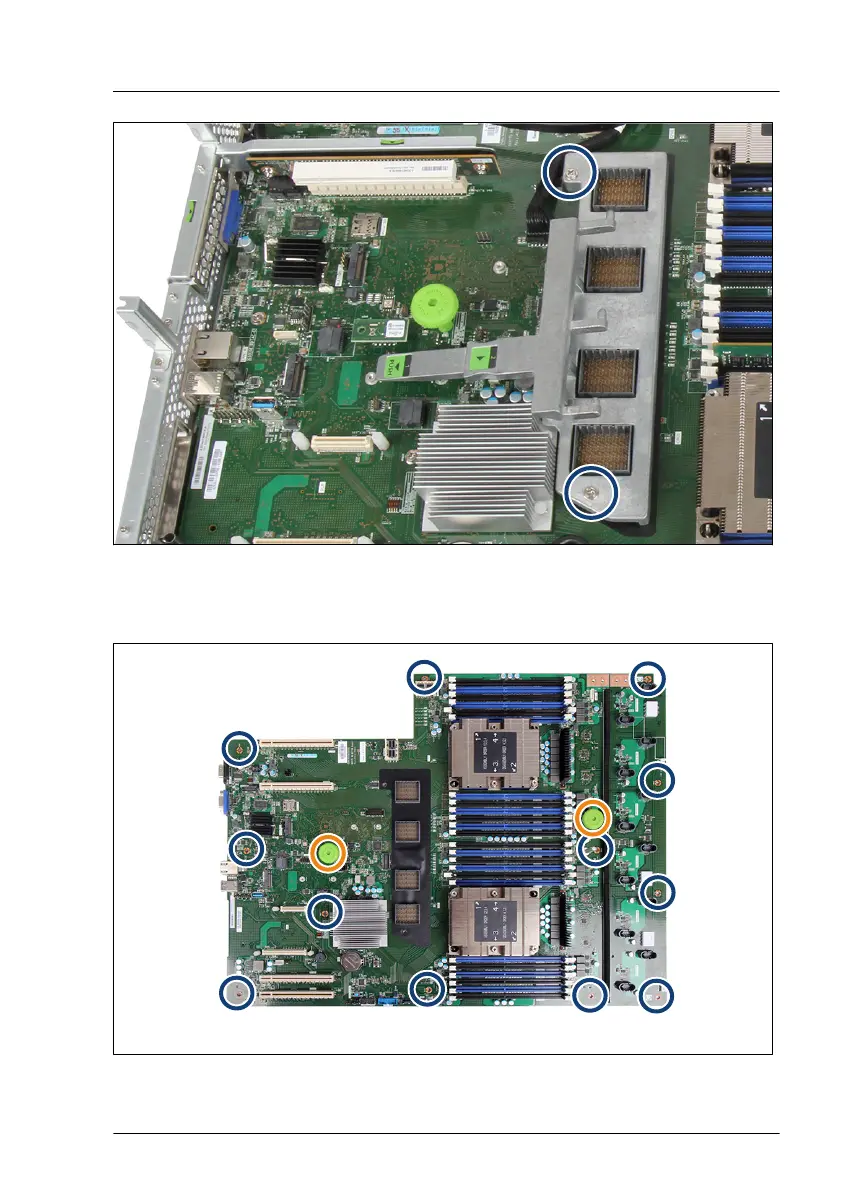

Figure 201: Locking device on bottom system board

▶

Loosen the two screws from the locking device (see circles) and remove it.

Figure 202: Position of the screws and knobs

System board and components

RX4770 M5 Upgrade and Maintenance Manual 363
