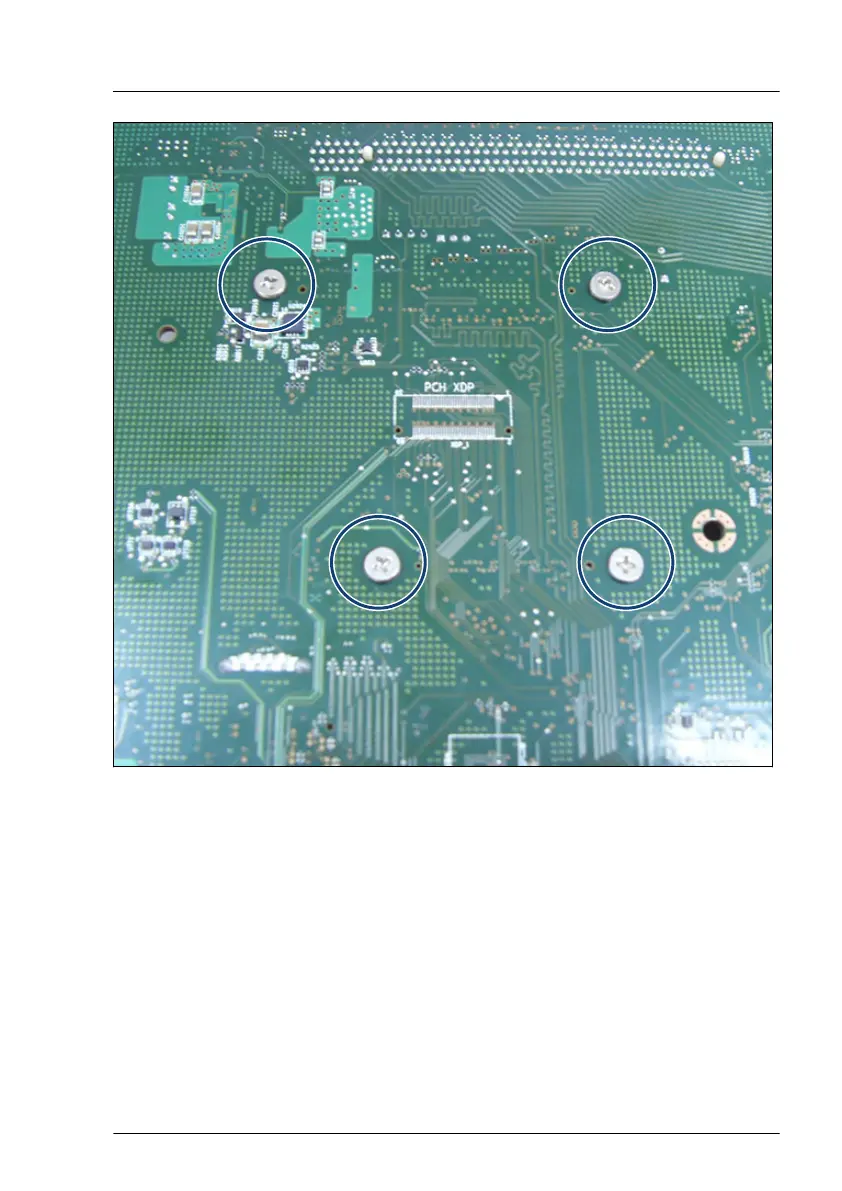

Figure 204: Position of the screws of the OCP bolts on the rear side of the bottom system
board
▶
Remove the four OCP bolts by losing the four screws on the rear side of the
bottom system board.
Installing the new bottom system board
▶
Check the settings on the new system board, see "Onboard settings" on
page
432.
▶
Fasten the four OCP bolts from the rear side of the bottom system board
(see Figure 203).
System board and components
RX4770 M5 Upgrade and Maintenance Manual 365
