"Disconnecting the power cord" on page
46
.
â–¶
"Getting access to the component" on page 47
.
Removing the LC kit
2
3
1
4
2
3
1
4

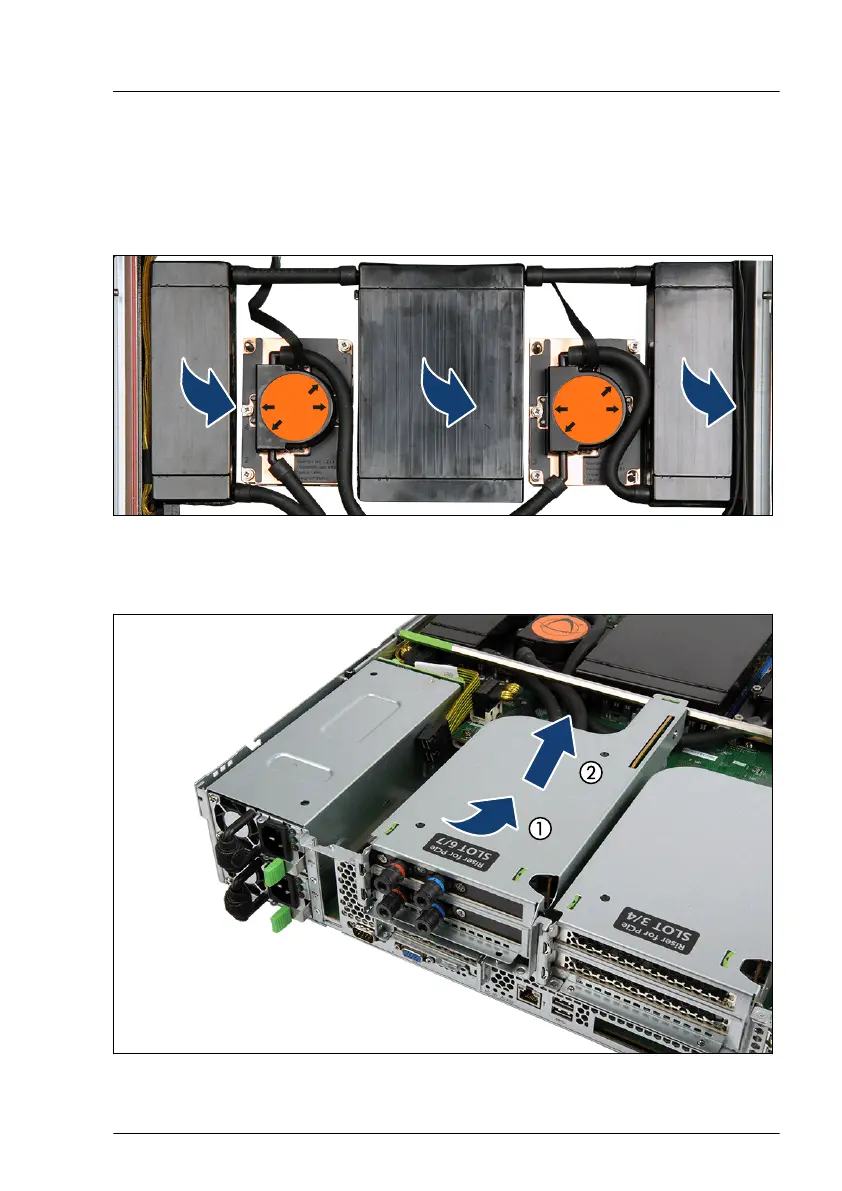

Figure 216: Removing the memory covers
â–¶
Pull up the three memory covers.
Figure 217: Removing the slot bracket with the tubes
Liquid cooling (LC)
RX4770 M5
Upgrade and Maintenance Manual
381
380
