Fujitsu PRIMERGY RX4770 M5 User Manual

Installing the CPU
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
A
B

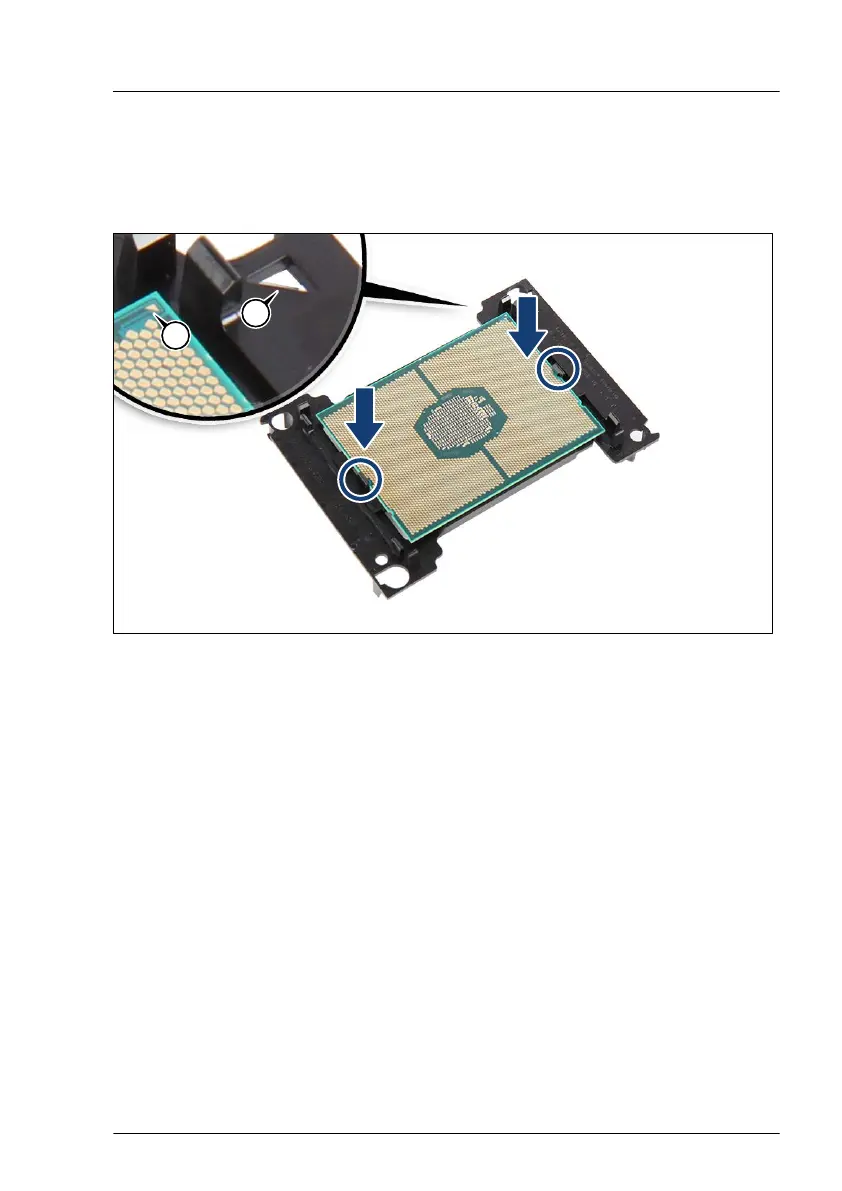

Figure 222: Installing the CPU in the CPU frame
▶
Click the CPU into the CPU frame (see arrows). Ensure that the triangle
marks on CPU (A) and on CPU frame (B) are on the same edge.
▶
Ensure that the CPU fits in its place.
When replacing the CPU
▶
When replacing the CPU, apply the thermal paste onto the CPU, see
"Applying the thermal paste to the CPU surface" on page
395.
Liquid cooling (LC)
RX4770 M5 Upgrade and Maintenance Manual 385
