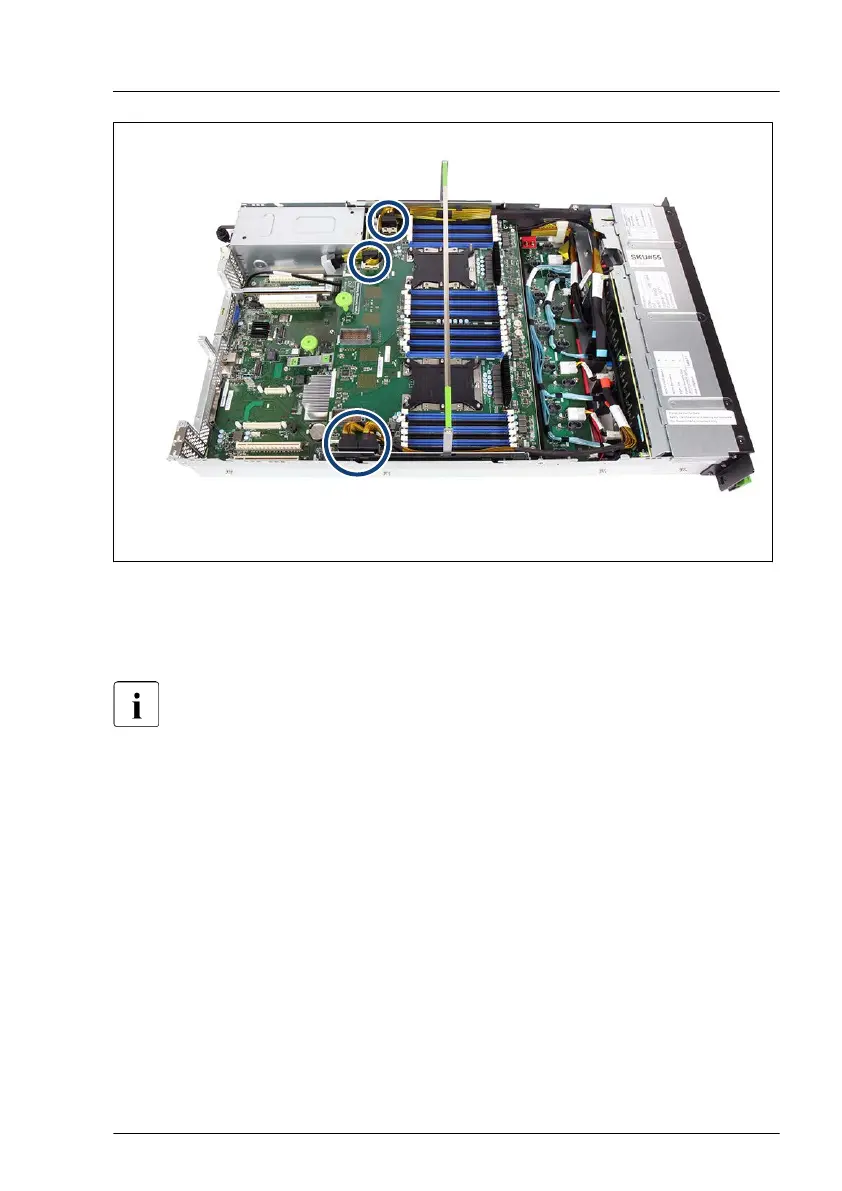

Figure 34: Connecting the mini-SAS cables
▶
Connect the mini-SAS cable to the SAS connectors on the top system board
(see circles).
Ensure that the mini-SAS cable is fixed strongly to the SAS connectors
and that there is free space between the memory modules and the
cables.
▶
If applicable, connect the mini-SAS cable to the RAID card.
▶
If applicable, connect the FBU cables to the RAID card.
Basic hardware procedures
RX4770 M5 Upgrade and Maintenance Manual 81
