FUTABA T10J Manual

101
Airplane
Function
Method

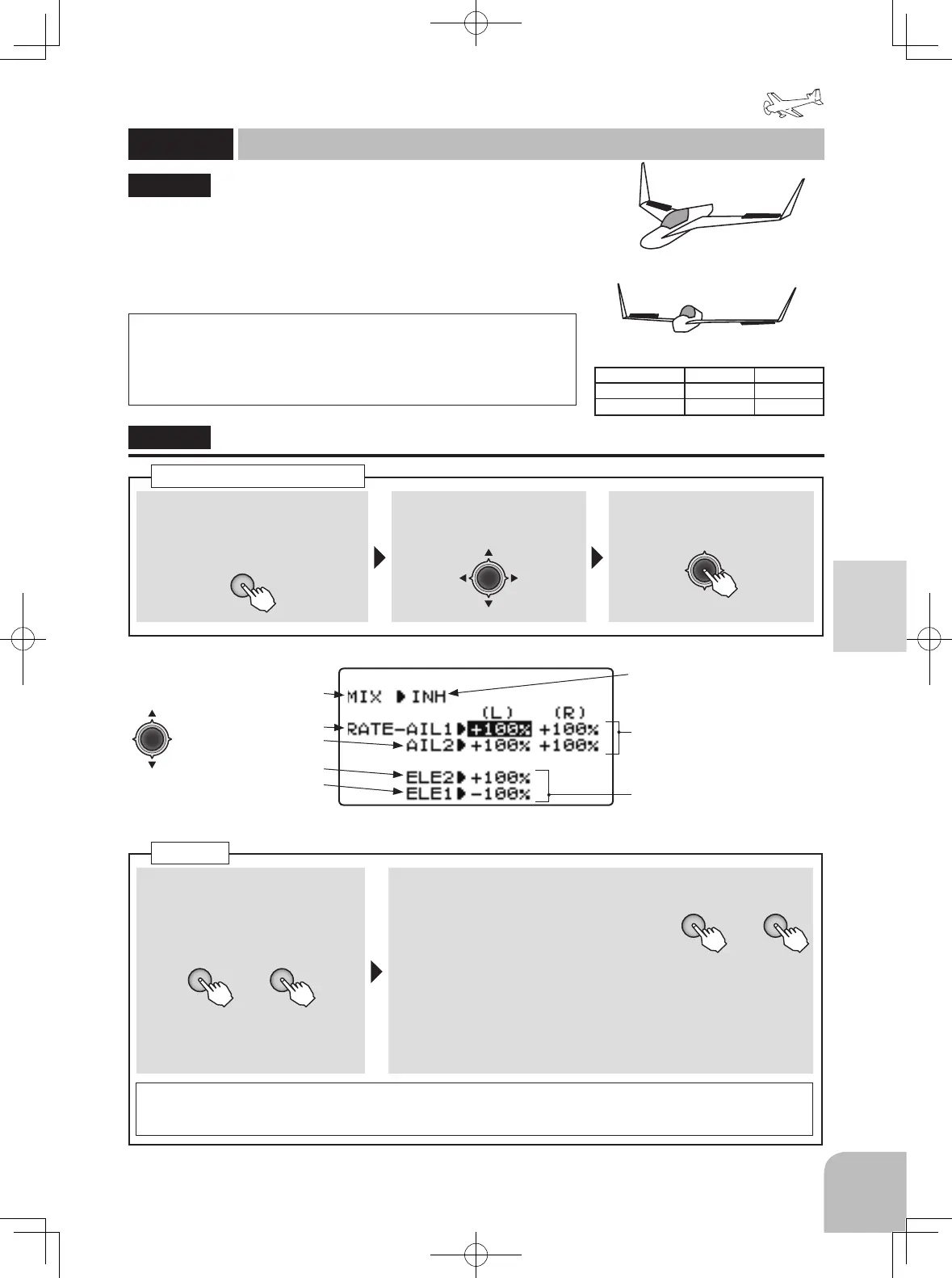

① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
This mixing is used with delta wing, tailess, and disk shaped
airplanes that combine the aileron and elevator functions.
Connect the CH1 servo to the left aileron and the CH2 servo to the
right aileron.
●The aileron and elevator travel can be adjusted individually.
NOTE：Elevon cannot be used simultaneously with V-tail or Ailevator
functions. You may use Flaperon or Di󱐯erential when this function is active.
If another function is already active, “Other WING mix “ON” is displayed on
the screen. After setting the active function to “INH” , set the V-tail function
to “ACT” .
"ELEVON"
ELEVON
Elevon
(ACROBATIC)
CH1 servo CH2 servo
Roll AIL1 AIL2
Pitch ELE2 ELE1
Activating the function
Aileron1（CH1）rate
Aileron2（CH2）rate
Elevator2（CH1）rate
Elevator1（CH2）rate
● When INH is selected, the
function cannot be used. To use
the function, select ACT.
（Aileron rate）
L：Aileron stick Left side rate
R：Aileron stick Right side rate
（Elevator rate）
● Select the setting item with
the Jog key.
■ Activating the function
① Select the "MIX" item and then
select the "ACT" by pressing
the + key or – key.
＋ －
or
●When you do not use a function,
set to the "INH" side.
■ Rate set
＋ －
or
② Select the "RATE" item and then adjust
the mixing rate by pressing the + key or
– key.
Range：-120 ～ +120%
Default：+100%
（only ELE1 : -100%）
● When you want to return the set value to the initial value, press
the + key and – key simultaneously.However, polarity does not
return.
NOTE：We recommend that setting be performed while moving the stick and checking the amount of movement. If
the amount of movement is too large, elevator and aileron operation will be compounded and the servo travel range
will be exceeded and a dead band in which the servo will not operate may be created.
ELEVON
CH1
CH1
CH2
CH2
Pitch
Roll
ELEVON

FUTABA T10J Specifications

General

Channels	10
Frequency	2.4GHz
Model Memory	30
Display	LCD
Telemetry	Yes
Weight	590g
Trainer Port	Yes
Modulation	S-FHSS
Power Supply	6V to 7.4V (2S LiPo)
