Glider
Function
Method
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
(1 second)
Calling the setting screen
1AIL 2AIL 2AIL+1F 2AIL+2F 2AIL+4FWING TYPE
"BUTTERFLY"
BUTTERFLY
Buttery mixing
(GLIDER)
Select the setting item
with the Jog key.
The number is changed
by + key or – key.
Amount of elevator
compensation
Current THR stick position
 0% : High 100% : Low
Aileron1
Buttery : ACT/INH
O󱐯set setting –Select "OFST" XX%.
Amount of movement setting
Aileron2
Can be either set to a
switch or when NULL is
controlled by the THR
stick.
(Currently selected condition)
BUTTERFLY    (NORM) 1
AIL1 ▶ 0 FLP1 ▶ 0
FLP2 ▶ 0
FLP3 ▶ 0
FLP4 ▶ 0
AIL2 ▶ 0
ELE ▶ 0
MIX ▶ INH
SW ▶ SwA ▶ DOWN
OFST ▶ 0% ( 50%)
Switch set to ON THR stick lowered
Resistance increased by raising
the elevators and lowering the
flaps
Fine tuning of an elevator
ON
OFF
High
THR stick operation
THR stick operation
Brake amount
MAX
Brake amount
MAX
OFST ▶ 0%
OFST ▶50%
Slow
High
Start from
center
Slow
At THR stick high press the Jog key for 1 second
press the Jog key for 1 secondAt THR stick center

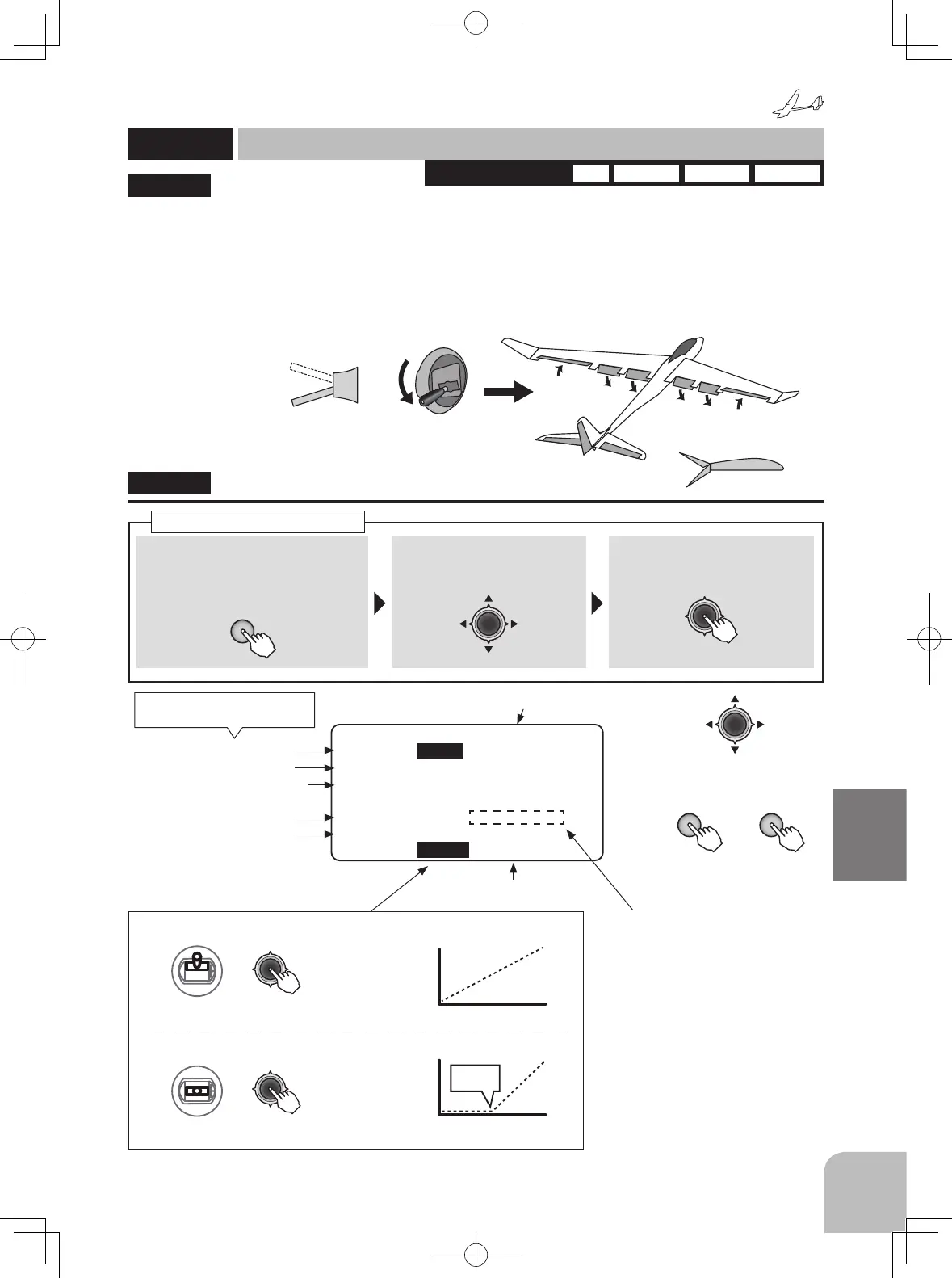

This function is utilized to quickly slow the
aircraft and reduce altitude by simultaneously
raising the left and right ailerons and lowering the
aps (camber ap, brake ap).
Butterfly (Crow) produces an extremely
efcient landing conguration by accomplishing
the following:
1. Slow the aircraft’s velocity.
2. Provide washout at the wing tips to reduce the
tendency to tip stall.
3. Create more lift toward the center of the wing
allowing it to y at a slower speed
Mixing during flight can be turned ON/OFF by
setting a switch.
The point at which the butterfly operation
reference point can be offset.
● The differential rate can be adjusted.
When MIX is set to ACT, the
amount of MIX(s) according to
stick operation is displayed.
