162
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
1AIL 2AIL 2AIL+1F 2AIL+2F 2AIL+4FWING TYPE
Flap2
(CH6)
Flap1
(CH5)
Elevator
(CH2)
■ Activating the function
① Select the "MIX" item and then select
the "ON" by pressing the + key or –
key.
＋ －
or
● When you do not use a function, set
to the "INH" side.
■ Mixing rate
＋ －
or
② Select the "RATE" item and
then adjust the mixing rate by
pressing the + key or – key.
Range：-120 ～ +120%
Default：0%
● When you want to return the set value to the initial
value, press the + key and – key simultaneously.

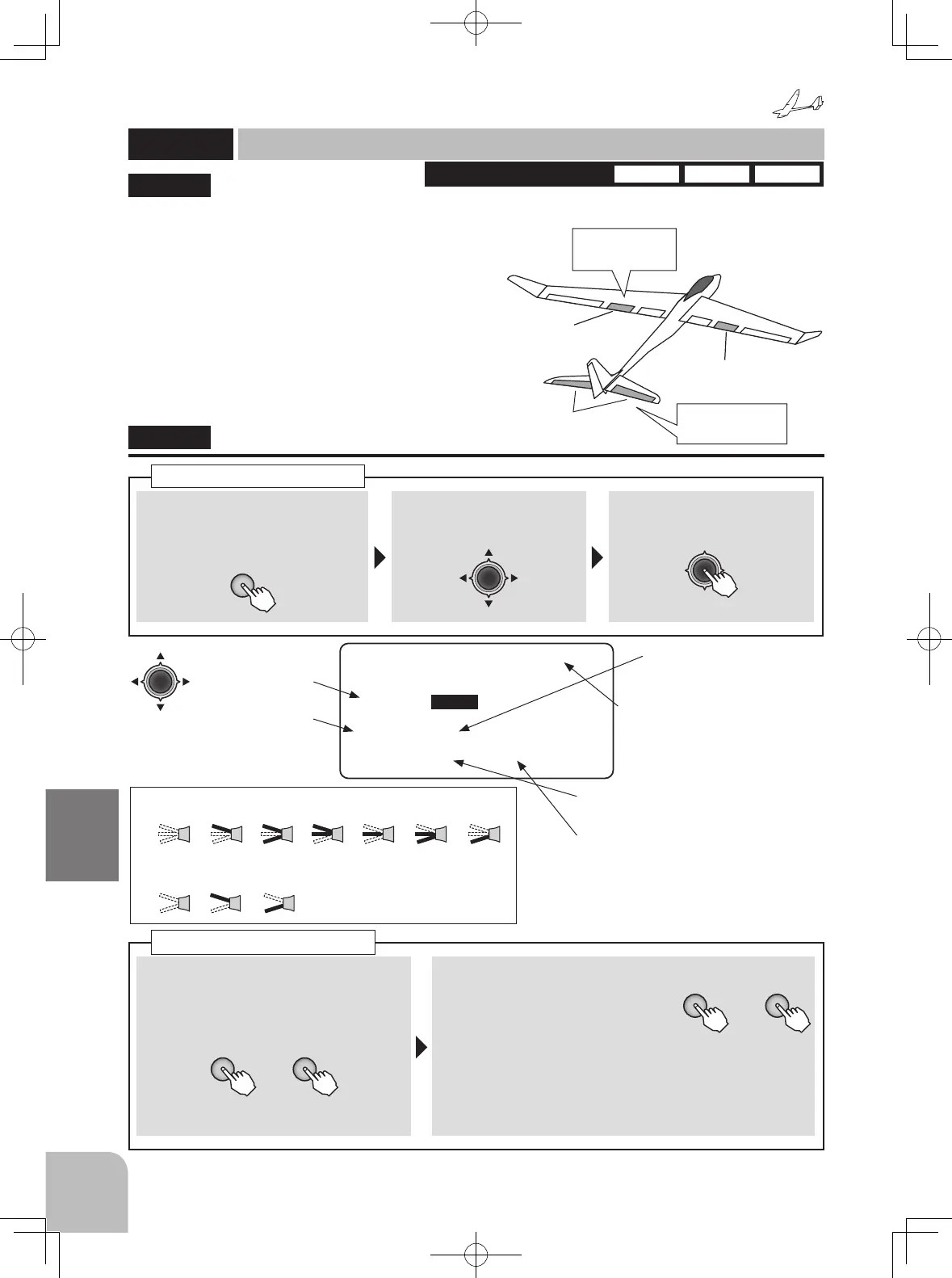

Camber → ELE mixing
"CAMBR → ELE"
CAMBR → ELE
Camber → Elevator mixing
(GLIDER)
Mixing rate
Activating the function
● When not using this function,
select INH.
● Select the setting item
with the Jog key.
● The ON/OFF switch can be changed.
(Selected with the Jog key and
changed with the +key)
● Sets the ON/OFF direction of the
selected switch.
● (RATE1) and (RATE2) show the
direction of camber of operation.
● When condition is used, the display
can be switched and each connection
can be set by switching the condition
switch.
compensated
for by elevators
Flap operation
pitch change
When the camber/speed flaps are utilized,
the aircraft might experience, a change in pitch.
This mix compensates for such changes by
incorporating elevator input.
● The elevator servos up/down rates can be
adjusted separately. If the mixing direction is
reversed, change the mixing rate polarity (+ or –).
● Mixing during flight can be turned ON/OFF by
setting a switch. (Always ON at SW [NULL] setting)
ON
ON
ON
ON
OFF
OFF
ON
ON
OFF
ON
ON
OFF
ON ON
OFF
OFF
ON
OFF
ON
OFF
OFF
NULL UP UP&DWN UP&CNT CENTER CNT&DN DOWN
● Switch ON/OFF 表示
3 Position Switch
ON
ON
ON
OFF
ON
OFF
NULL UP DOWN
2
Position Switch
CAMBR→ELE (NORM)
(RATE1) (RATE2)
ELE ▶ 0 ▶ 0
MIX ▶ INH
SW ▶ SwA ▶ DOWN
To Next Page
